System Diagnosis - Hitachi

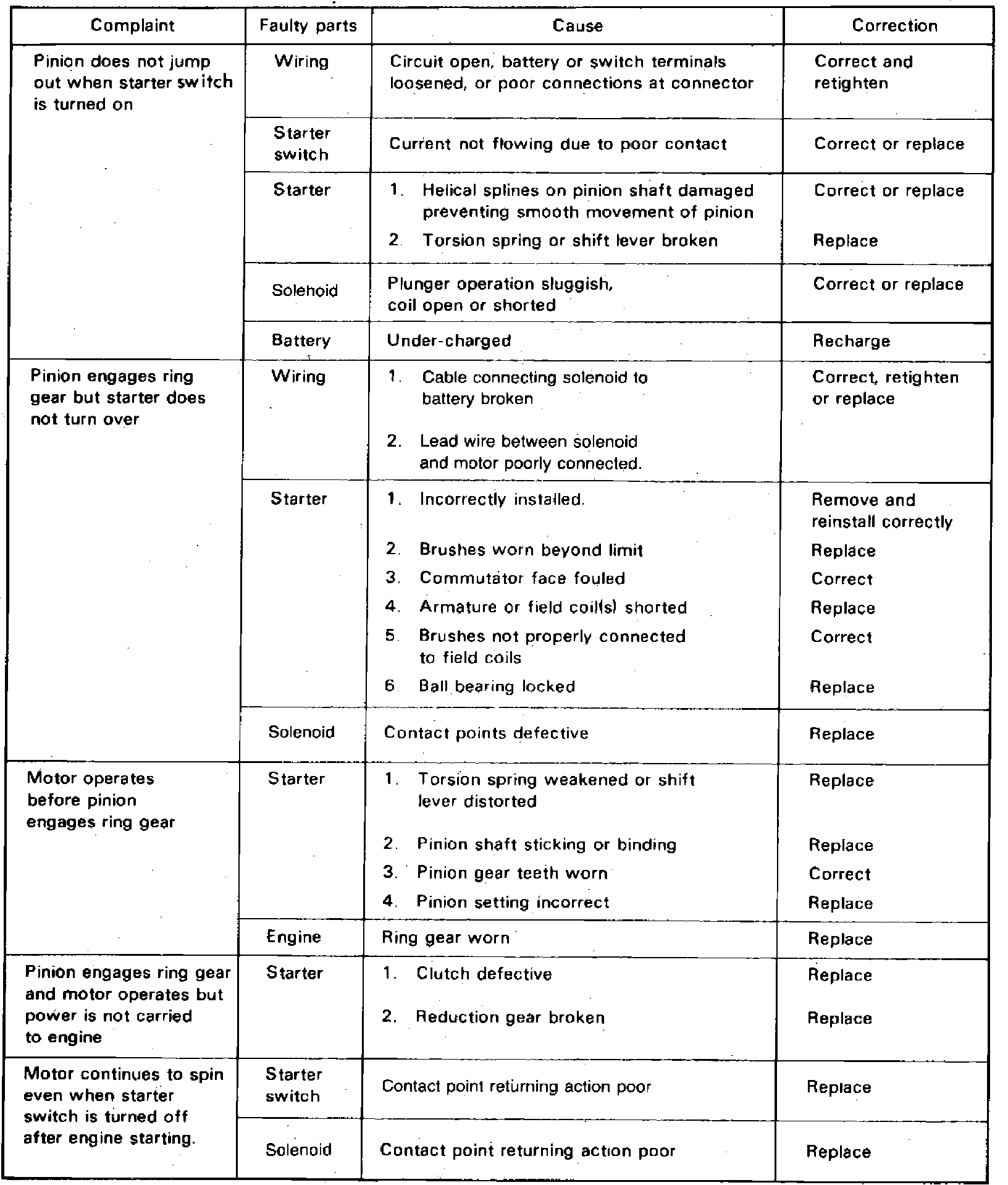

Fig. 2 Hitachi starter diagnosis chart:





When diagnosing this starter, refer to Fig. 2.
