Throttle Valve Cable Adjust

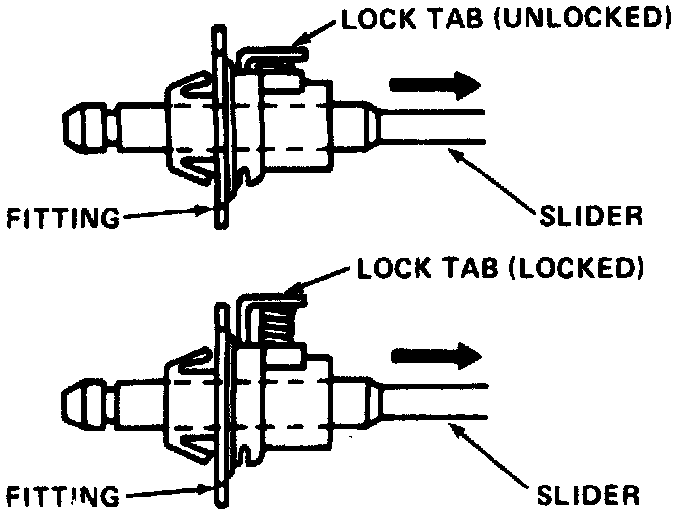

1. With engine off, depress and hold down locking tab, then move slider until it stops against fitting.

2. Release locking tab, then rotate throttle lever to its full travel position. slider must ratchet toward lever when lever is rotated to its full travel position.

3. Check cable for sticking or binding, then road test vehicle and ensure proper operation.
