Control Assembly, HVAC

Control Assembly:

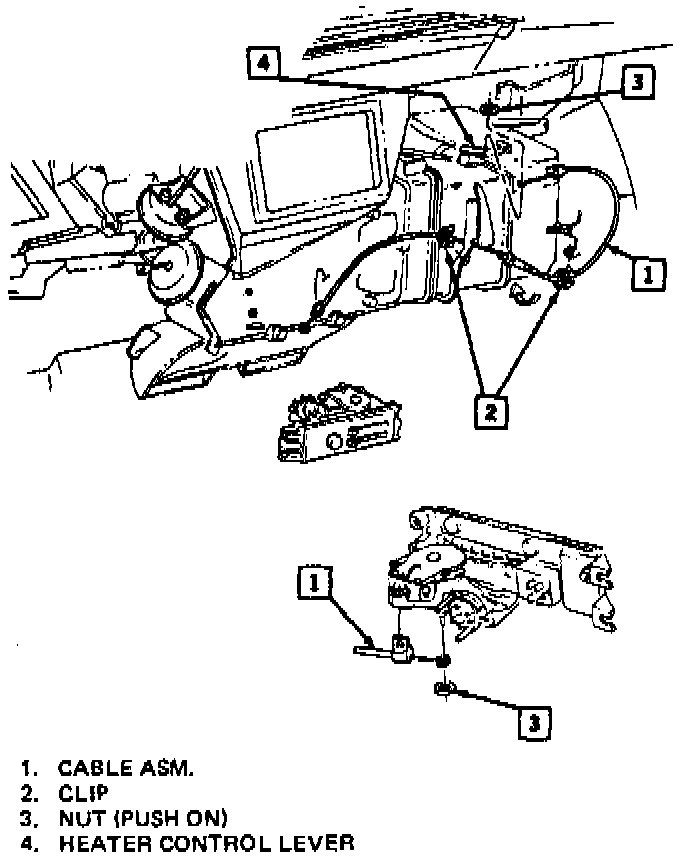

Temperature Control Cable:

Vacuum Harness Passenger Compartment:

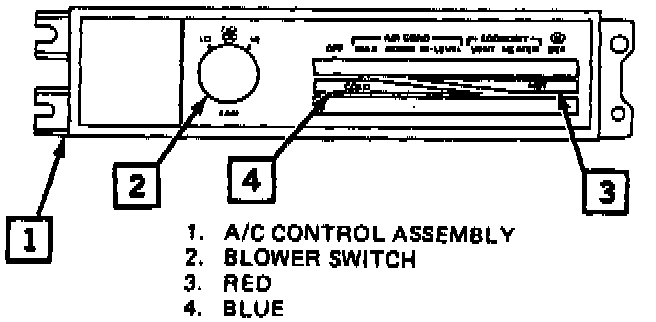

A/C Control Assembly Wiring:

REMOVE OR DISCONNECT
1. Center I.P. plate.
2. Four control head retaining screws.
3. Pull control rearward.
4. Electrical and Vacuum Connectors.
5. Temperature Cable.
6. Control assembly.

INSTALL OR CONNECT
1. Temperature cable to control assembly.
2. Electrical and Vacuum connectors to control assembly.
3. Four control head retaining screws.
4. Center I.P. trim plate.
