Control Panel

Control Panel Location:

Control Panel Connector View And A/C Compressor Relay With Electronic Climate Control:

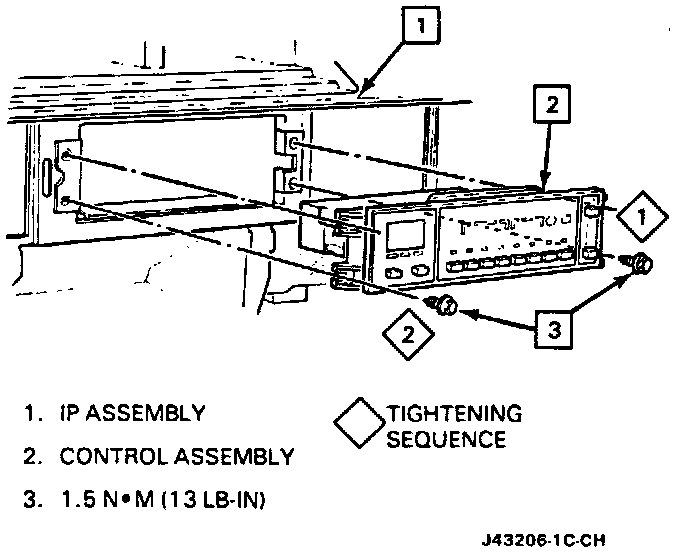

Control Assembly Mounting:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. I.P. center trim assembly.
3. Four screws securing tempmatic control assembly to I.P.
4. Tempmatic control assembly and disconnect wiring behind assembly.

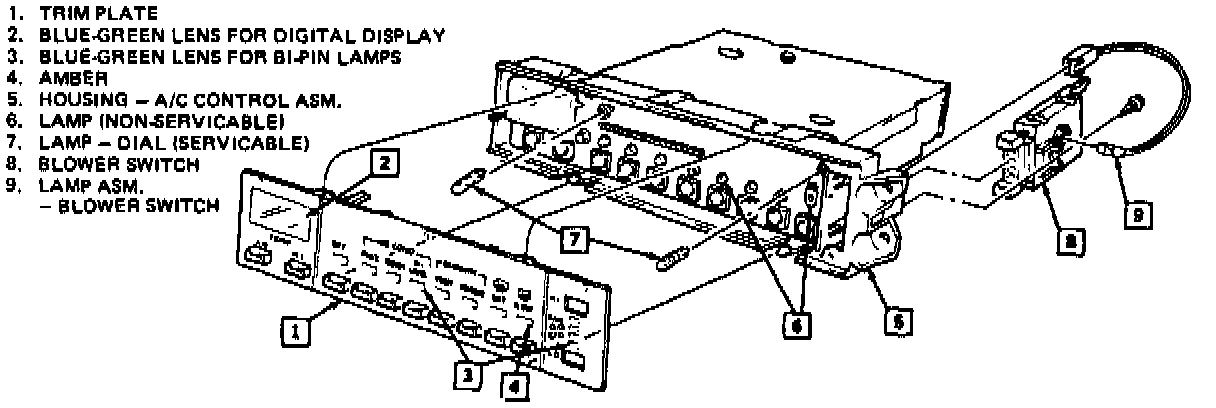

5. Trim Plate from housing (retained by clips).
6. Light pipe from back of trim plate (retained by clips).

INSTALL OR CONNECT
1. Light pipe to back of trim plate.
2. Trim plate to housing.
3. Wiring to back of A/C control assembly.
4. Four screws securing tempmatic control assembly to I.P.
5. I.P. center trim plate.
6. Negative battery cable.
