Engine Controls - Updated Code 48 (Misfire) Chart

87olds7

SUBJECT SERVICE MANUAL REVISION CODE 48,
MISFIRE DIAGNOSIS, SECTION 6E3


MODELS/YEARS 1988 DELTA 88 AND NINETY-EIGHT MODELS WITH 3800 (VIN CODE C) ENGINE
NUMBER: 88-T-07


DATE: Nov. 13, 1987


SECTION: 6E

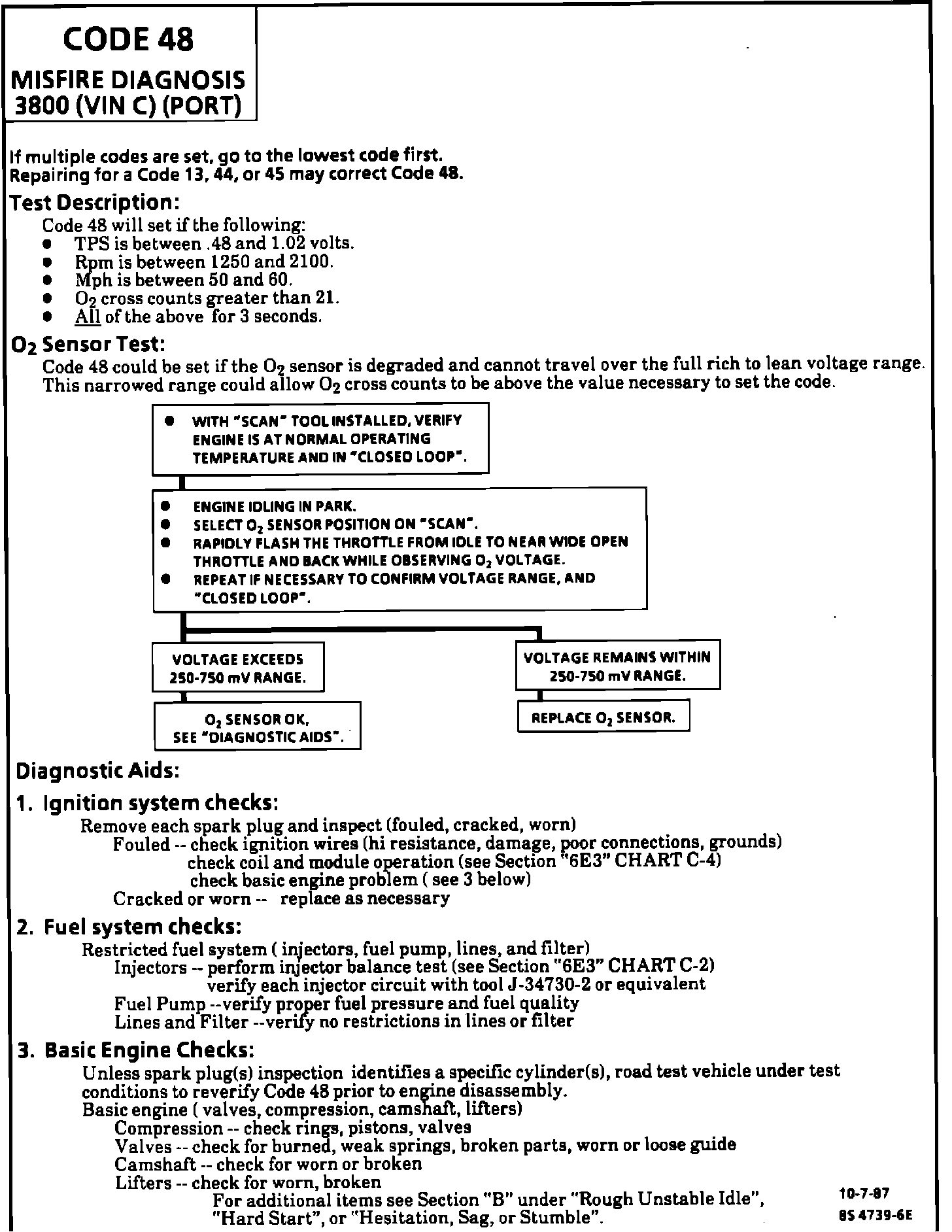

CODE 48MISFIRE DIAGNOSIS 3800 (VIN C) (PORT):

This revised diagnosis replaces the Code 48 chart currently in the 1988 Delta 88 and Ninety-Eight New Product Service Manual, page 6E3-A-78.
