Engine Controls - Updated Code 32, EGR

9223olds01

NUMBER:
89-T-95

CORP.REF.NO:
916515

DATE:
July 1989

SECTION:
6E2


SUBJECT
SERVICE MANUAL UPDATE - SECTION 6E2 - DRIVEABILITY AND EMISSIONS - ADD CODE 32 FACING PAGE AND CHART

MODELS/YEARS
1989 CUTLASS CALAIS 2.5L (VIN CODE U)

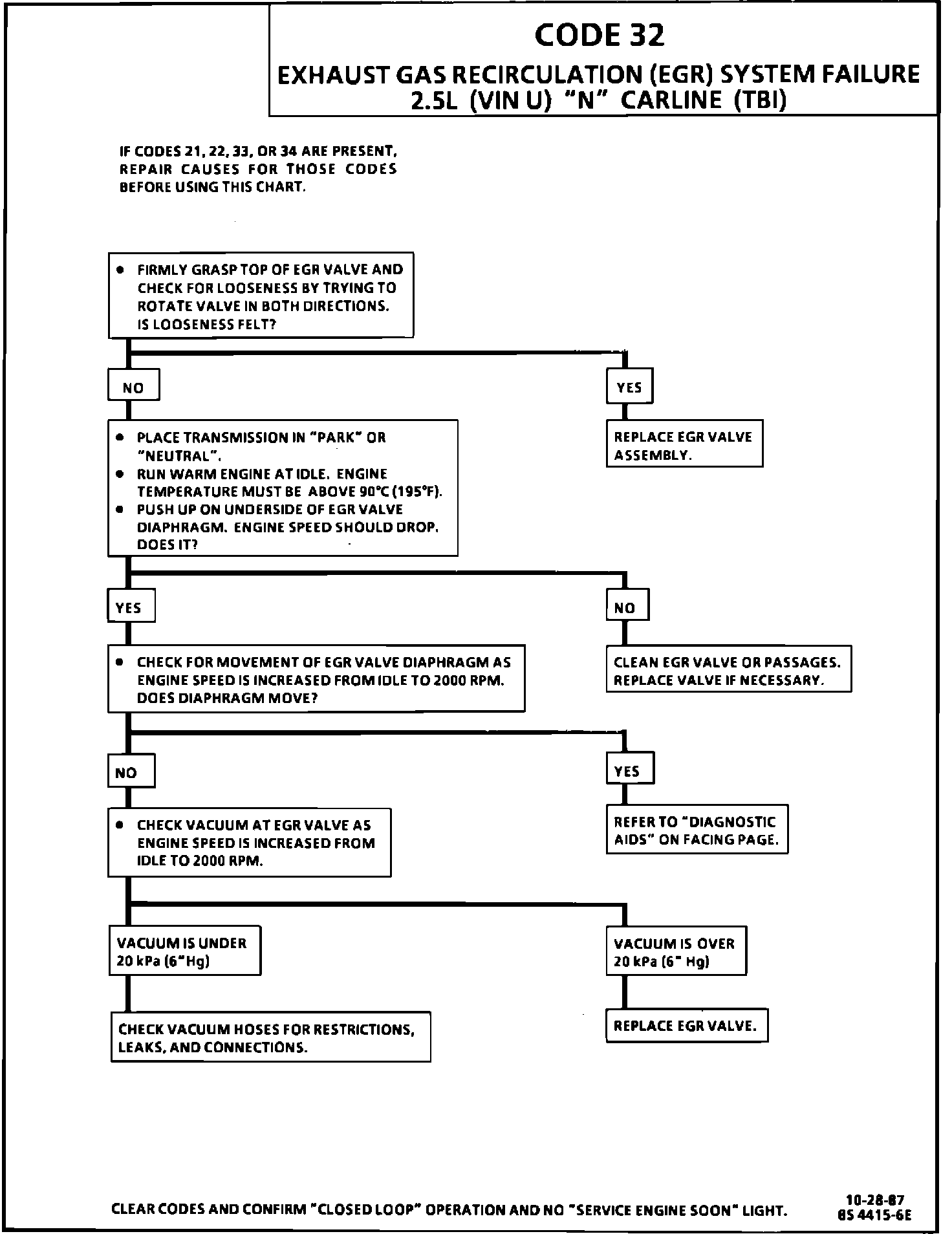

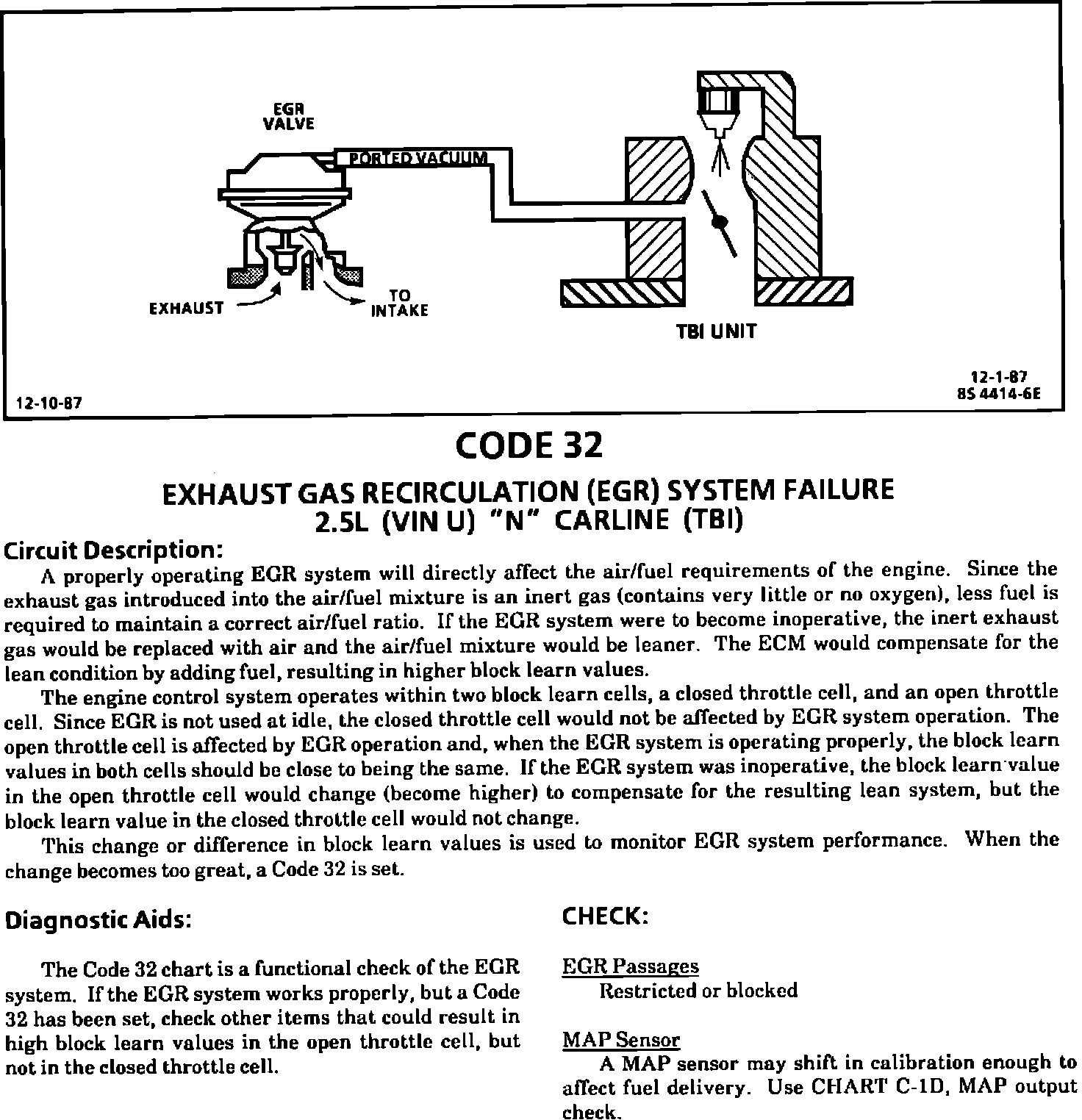

This bulletin is to add Code 32 Chart to Section 6E2, "Driveability And Emissions" of the 1989 2.5L (VIN U) Cutlass Calais Service Manual. Please refer to this bulletin when diagnosing Code 32 on these vehicles. Included with this bulletin is the Code 32 Diagnostic Chart and the corresponding Facing Page.
