Fuse Block - Revised Index/Label, Manual Update

9219oldsmobile01

NUMBER: 89-T-133

CORP.REF.NO: 938116

DATE: September 1989

SECTION: 8A


SUBJECT:
SERVICE MANUAL UPDATE - SECTION 8A FUSE BLOCK (REVISED ILLUSTRATION PAGE)


MODELS/YEARS:
1989 CUTLASS CIERA/CUTLASS CRUISER

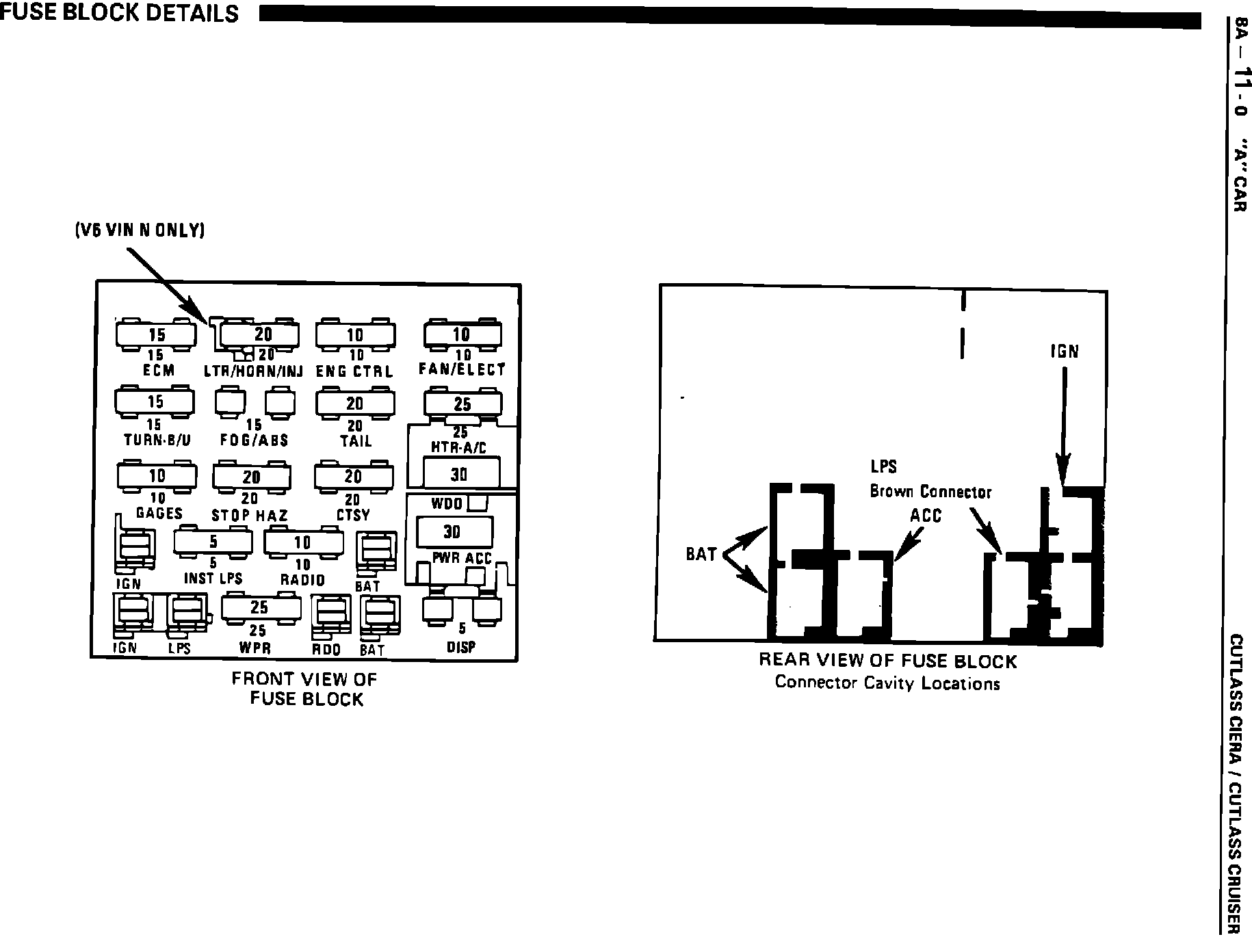

The Fuse Block Illustration on Page 8A-11-0 in the 1989 Oldsmobile Cutlass Ciera/Cutlass Cruiser has been revised. Please mark-up your copy of this service manual with a reference to this bulletin.
