Instruments - Updated Diagnosis for Low Coolant Module

9219oldsmobile05

NUMBER: 89-T-166

CORP.REF.NO: 008107

DATE: June 1990

SECTION: 8A


SUBJECT:
SERVICE MANUAL UPDATE - SECTION 8A ELECTRICAL DIAGNOSIS (LOW COOLANT MODULE DIAGNOSIS)

MODELS/YEARS:
1989 EIGHTY-EIGHT AND NINETY-EIGHT MODELS





The 1989 Eighty-Eight and Ninety-Eight Service Manual is missing the Low Coolant Module Diagnostics in "Cell"77" of Section 8A.

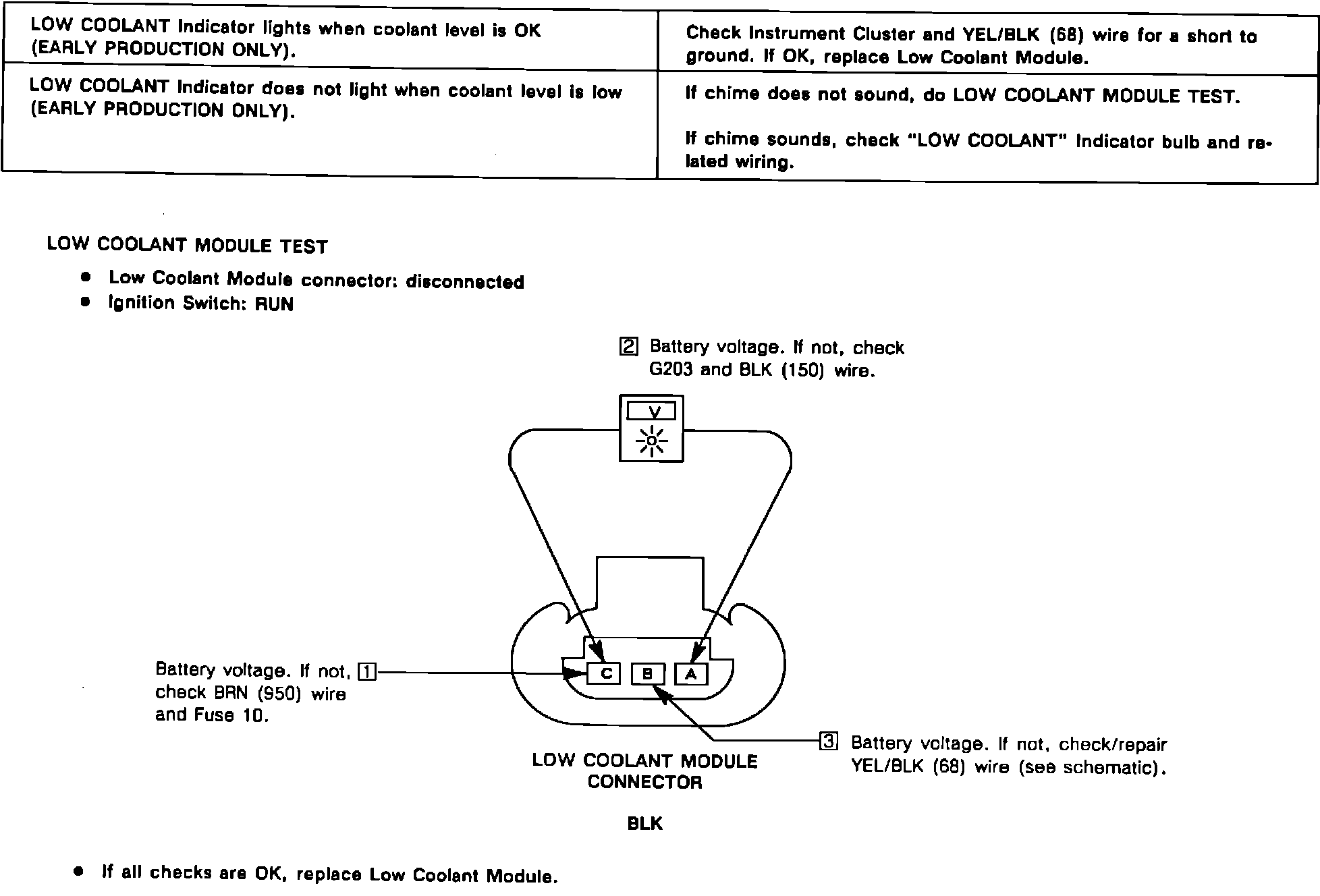

Refer to the Low Coolant Module Diagnostics on this bulletin.

Please mark a reference to this bulletln in your copy of the 1989 Eighty-Eight and Ninety-Eight Service Manual at Page 8A-77-6.

The Low Coolant feature of RPO Y67, Reminder package, was deleted from production after November 13, 1988.
