Inside Remote Handle

INSIDE REMOTE HANDLE

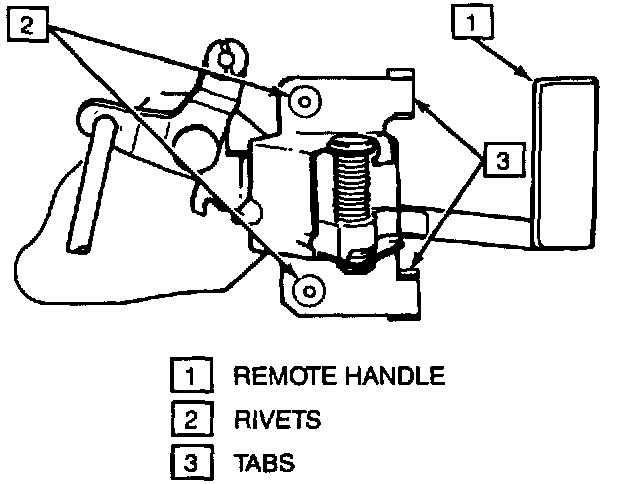

Inside Remote Handle:

REMOVE OR DISCONNECT
1. Trim panel
2. Water deflector
3. Rivets (2) by first center punching a depression in head of rivet, then drilling out rivet using a 4.8 mm (3/16") drill bit
4. Inside remote handle (1) by sliding rearward to disengage tabs on handle from slots in do 9r.

INSTALL OR CONNECT
1. Inside remote handle (1) by placing tabs on handle into slots in door and sliding handle forward
2. Rivets (2) using 3/16" peel type rivets
3. Water deflector
4. Trim panel
