Switch Plate

SWITCH PLATES

Switch Plate - Removal:

REMOVE OR DISCONNECT

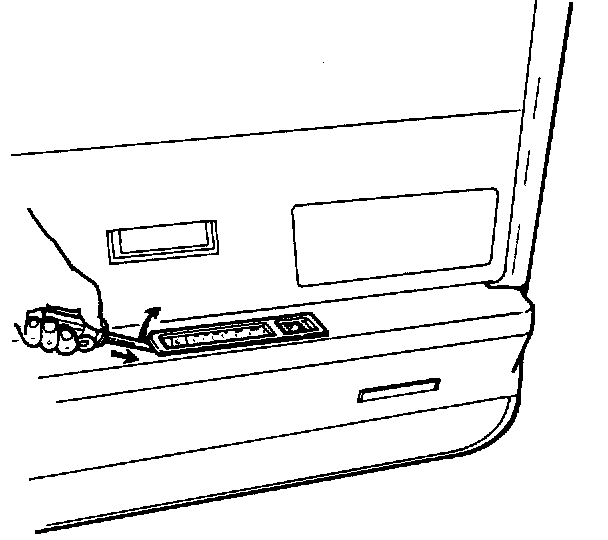

1. Switch plate by inserting flat-bladed tool between trim panel and front edge of switch plate to disengage retainer from trim panel.
2. Slide switch plate forward.
3. Electrical connectors

INSTALL OR CONNECT
1. Electrical connector to window switch.
2. Electrical connector to lighter.
3. Switch Assembly. Engage tab at front and snap opposite end into place.
