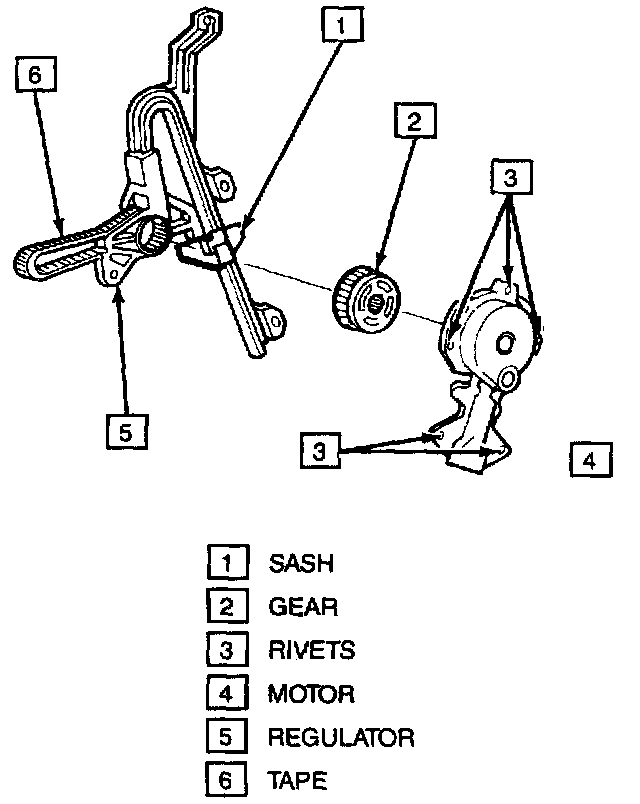

Window Regulator Motor

REGULATOR MOTOR







REMOVE OR DISCONNECT
1. Regulator.
2. Motor by drilling out rivets holding motor to regulator using a 4.8 mm (3/16") drill bit.

INSTALL OR CONNECT
1. Motor to regulator using 3/16" rivets.
2. Regulator.
