Refrigerant Pressure Sensor / Switch: Locations

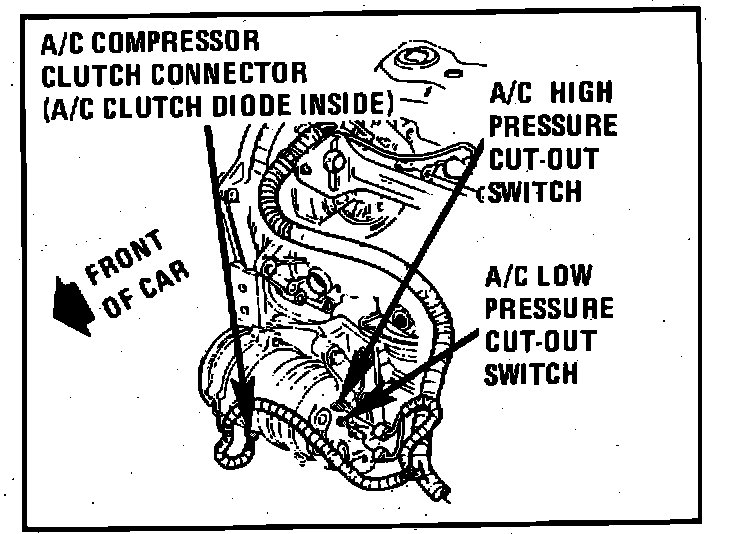

RH Front Of Engine.:




RH Front Of Engine, On LH End Of A/C Compressor

Applicable to: 4-151/2.5L
