A/C Control Assembly Switch - Revised Schematic

NUMBER:
90-T-92

CORP.REF.NO:
038118

DATE:
April 1990

SECTION:
8A


SUBJECT
SERVICE MANUAL UPDATE - SECTION 8A-65 HEATER
AND A/C CONTROL ASSEMBLY SWITCH (REVISED SCHEMATIC)

MODELS/YEARS
1990 CUTLASS SUPREME MODELS

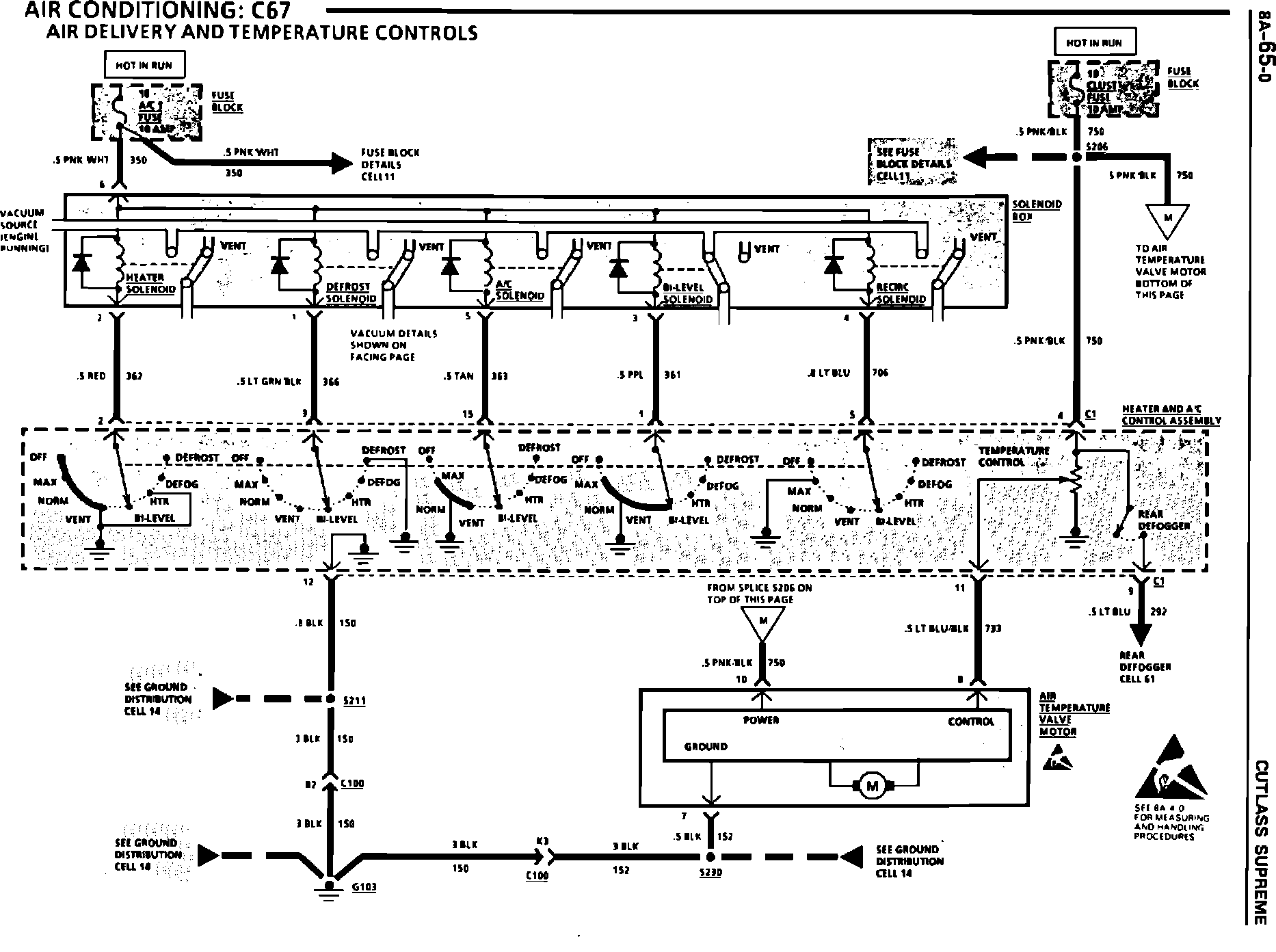

The Heater and A/C Control Assembly switch as shown on page 8A-65-0 of the 1990 Cutlass Supreme Service Manual, has been revised. Please mark a reference to this bulletin in your copy of the above manual.
