Power Door Lock Switch Escutcheon

Door Lock Switch:

Remove or Disconnect

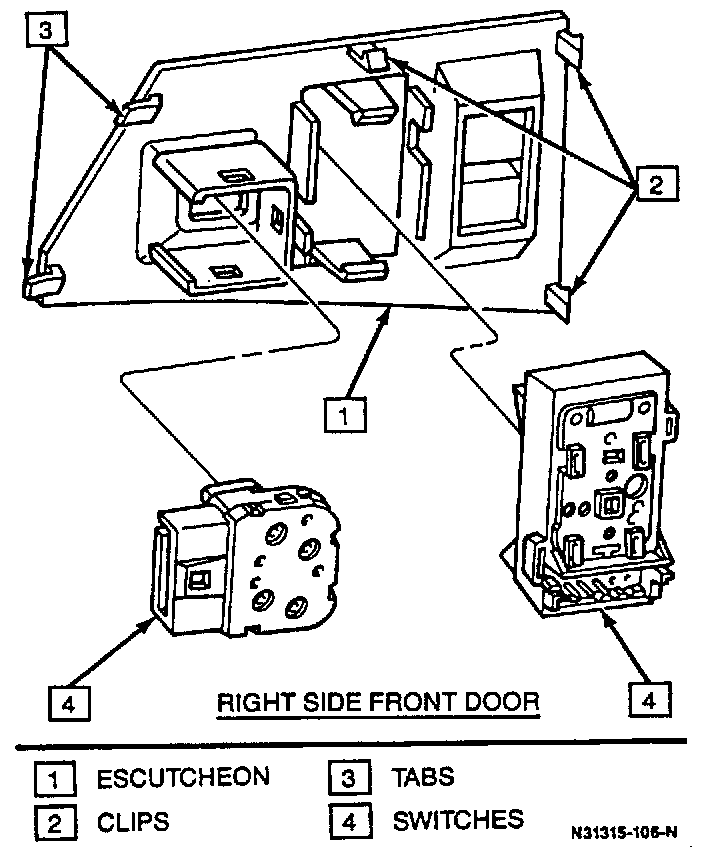

1. With a thin bladed tool, disengage clips (2) and slide escutcheon (1) forward to disengage tabs (3).
2. Electrical connectors.
3. Switches (4) from escutcheon (1).

Install or Connect

1. Switches (4) to escutcheon (1).
2. Electrical connectors.
3. Escutcheon (1).
