Front Suspension

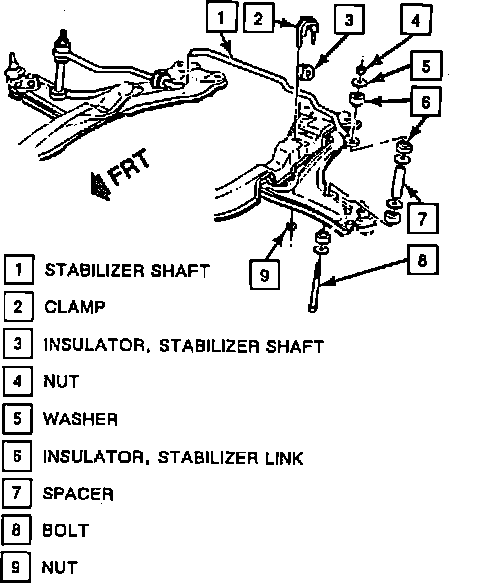

Fig. 8 Stabilizer Bar Installation. Models Less Direct Acting Stabilizer System:

Fig. 9 Stabilizer Bar Installation. Models w/Direct Acting Stabilizer System:

1. Raise and support vehicle, allowing control arms to hang freely.
2. Remove left front wheel and tire assembly.
3. Disconnect stabilizer bar at control arms and suspension support assemblies, Figs. 8 and 9.
4. Loosen front and remove rear and center bolts from suspension support assembly. Lower support enough to allow stabilizer bar removal.
5. Remove stabilizer bar with insulators.
6. Reverse procedure to install.
