Cruise Control
>>
Cruise Control Servo
>>
Testing and Inspection
>>

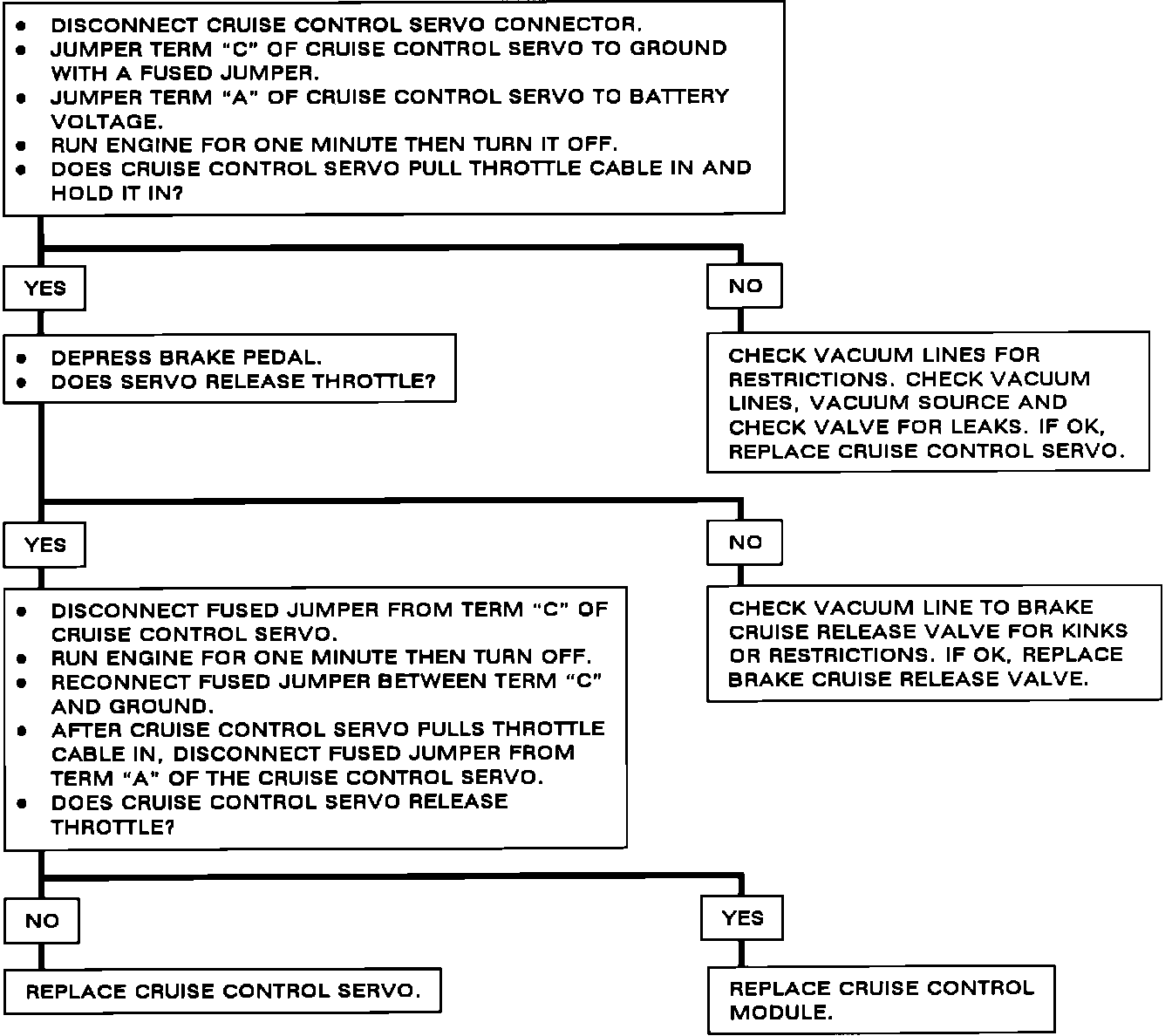

Chart #15 - Servo Actuation Test
Chart #15 - Servo Actuation Test
Chart #15 - Servo Actuation Test:
