Blower Motor: Service and Repair

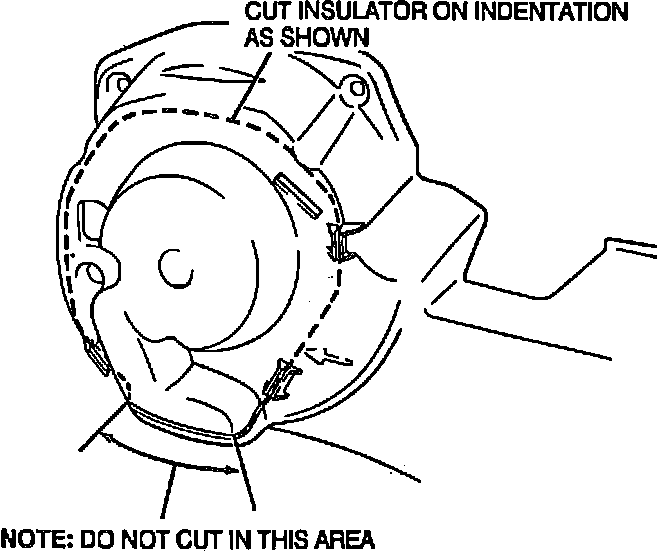

Fig. 34 Cutting Pattern For Blower Motor Removal. 1992:

1. Disconnect battery ground cable.
2. On models with 3.3L/V6-204 engines, remove power steering pump from mounting bracket and position aside with hoses attached.
3. Disconnect electrical connectors from blower motor.
4. Partially cut blower motor case cover as indicated in Fig. 34. The cutting pattern is also indicated on the blower case cover. Cover thickness is approximately 1/8 inch. Cut just through thickness of cover. Any cut deeper than thickness of cover may cause damage to cooling tube.
5. Move cut portion of cover downward and disconnect blower motor cooling tube.
6. Remove blower motor retaining screws and blower motor.
7. Reverse procedure to install. Use three retaining clips to attach cut portion of blower motor cover.
