Tools - Engine Support Fixture Adapter

NUMBER: 93-T-01

CORP.REF.NO: 236112R

DATE: October 1992

SECTION: 6

SUBJECT:
NEW SPECIAL TOOL - J28467-330
ENGINE SUPPORT FIXTURE ADAPTER

MODELS/YEARS:
1992-93 ACHIEVA W/3.3L (VIN N)





SERVICE INFORMATION:
Use J 28467-330 Engine Support Fixture Adapter for supporting the engine when servicing engine/transmission components. - To use J 28467-330 adapter:
1. Loosen pilot bolts on both ends of adapter.

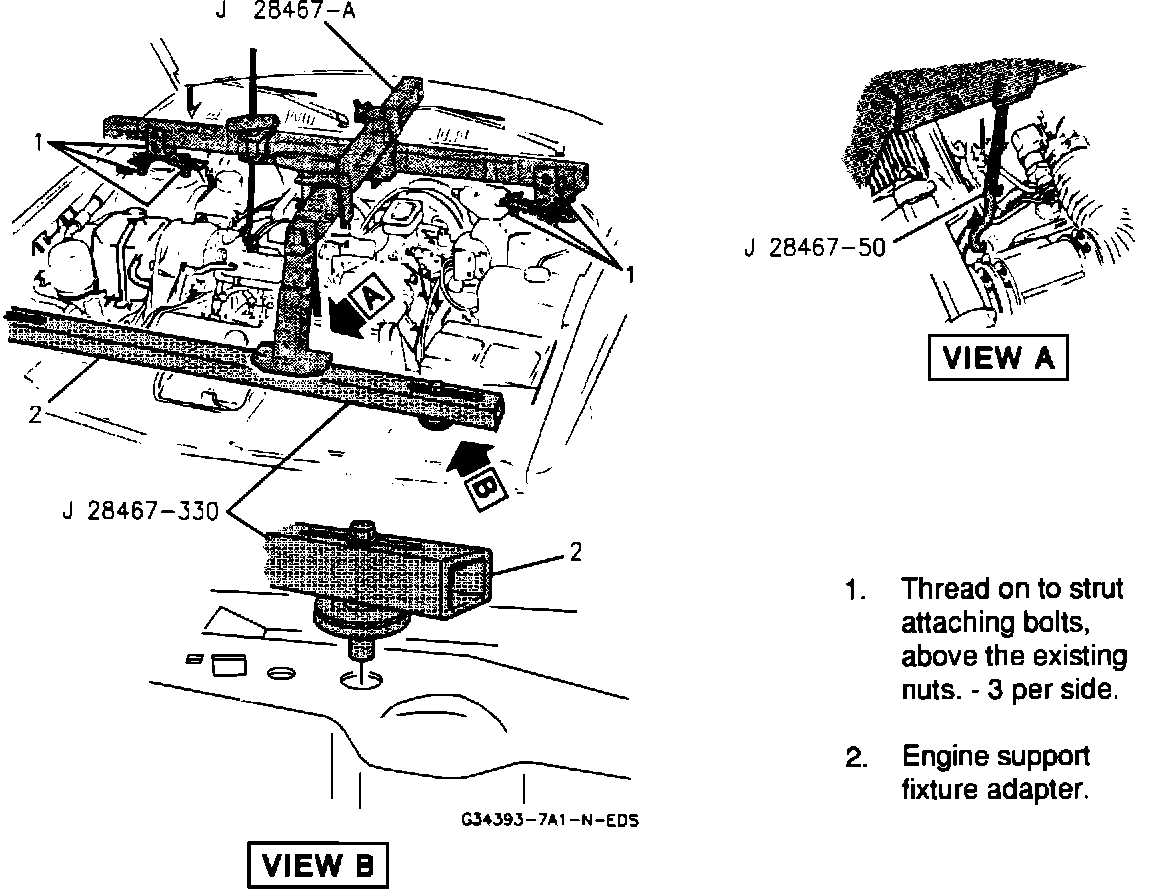

2. Place pilot bolts in holes in tie bar, refer to the illustration - View B.
3. Tighten pilot bolts.
4. Attach J 28467-A to strut towers and place the leg of J 28467-A on adapter as shown in the illustration.
5. Attach engine support hooks to engine suppod fixture and engine lift hooks.

Note:
Failure to use J 28467-330 in conjunction with J 28467-A to support engine may cause damage to body or engine components.
