Chart 1 Belts Indic. Operates, But One/Both Doors Sticks

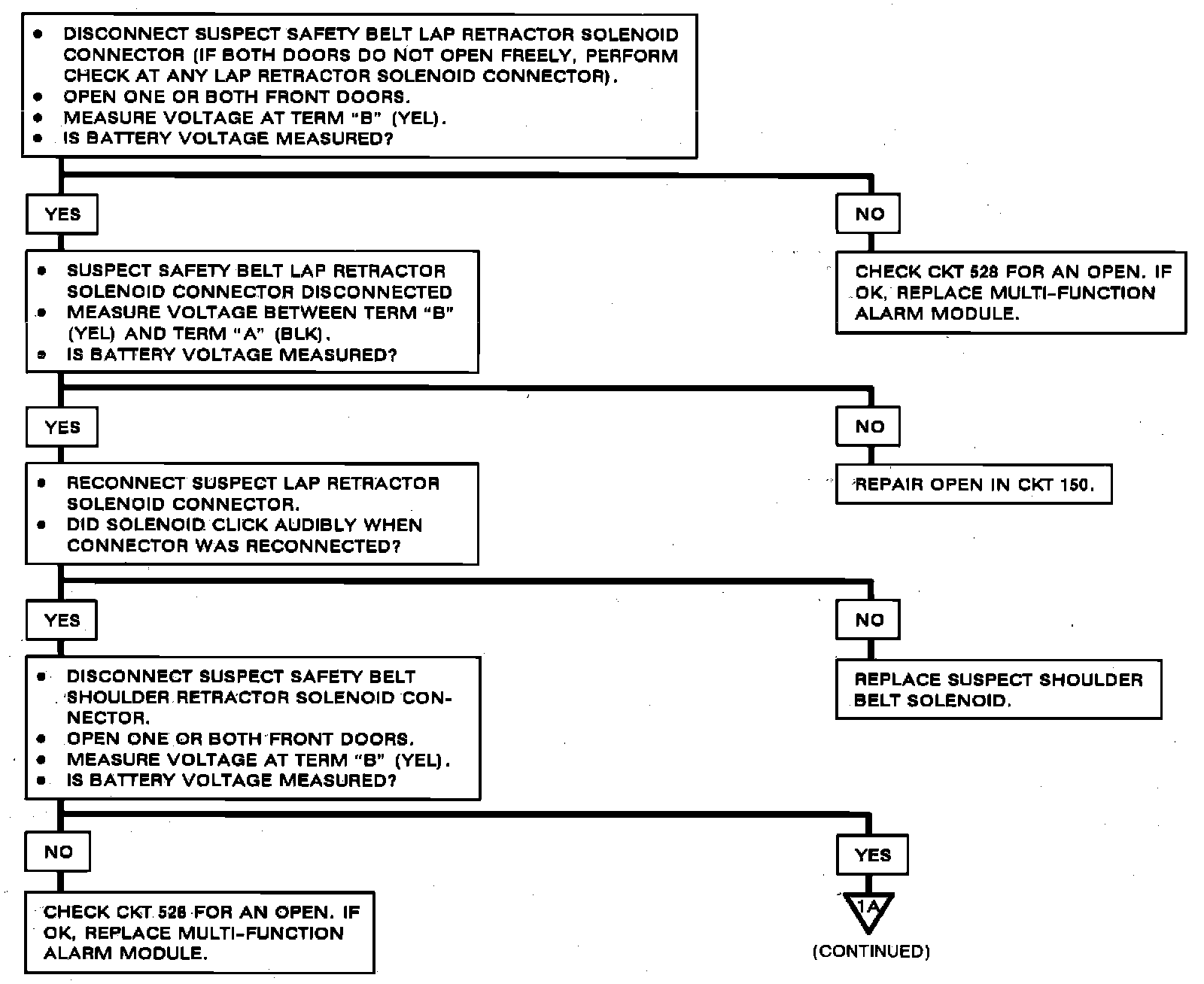

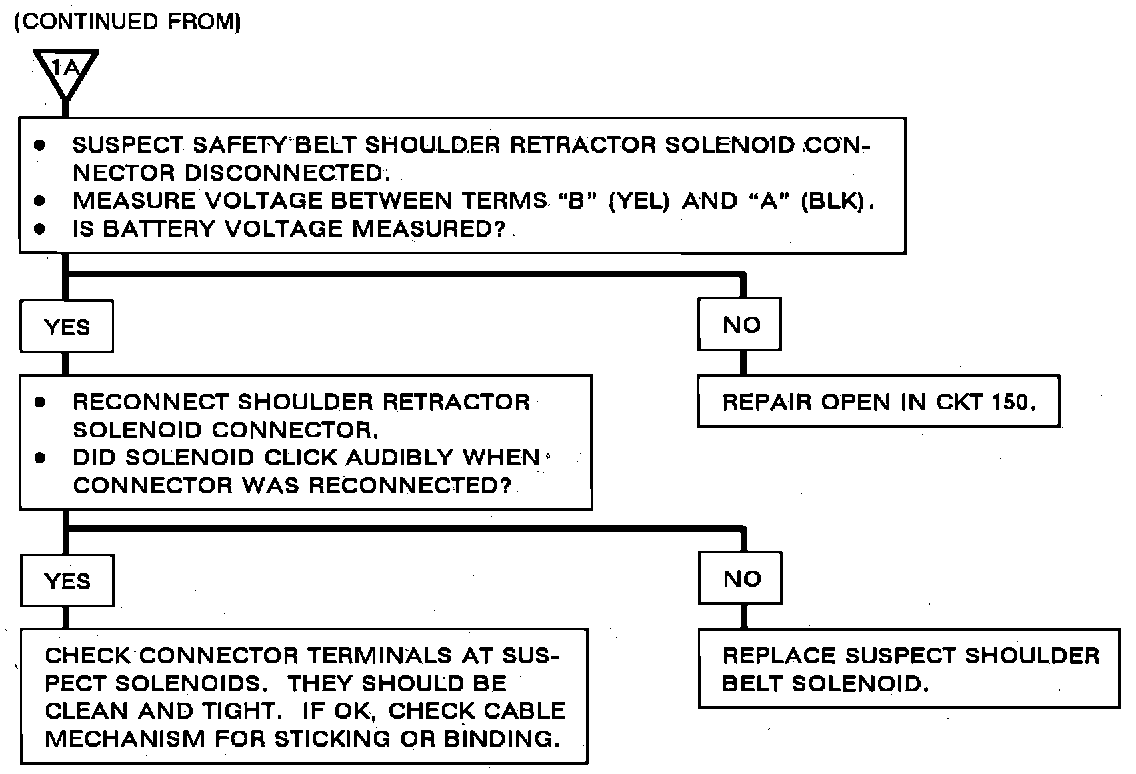

Chart #1 - Fasten Belts Indicator Operates Normally But One Or Both Doors Do Not Open Freely:



Chart #1 - Fasten Belts Indicator Operates Normally But One Or Both Doors Do Not Open Freely:
