Daytime Running Lamps (DRL) Module
Daytime Running Lamps (DRL) Module

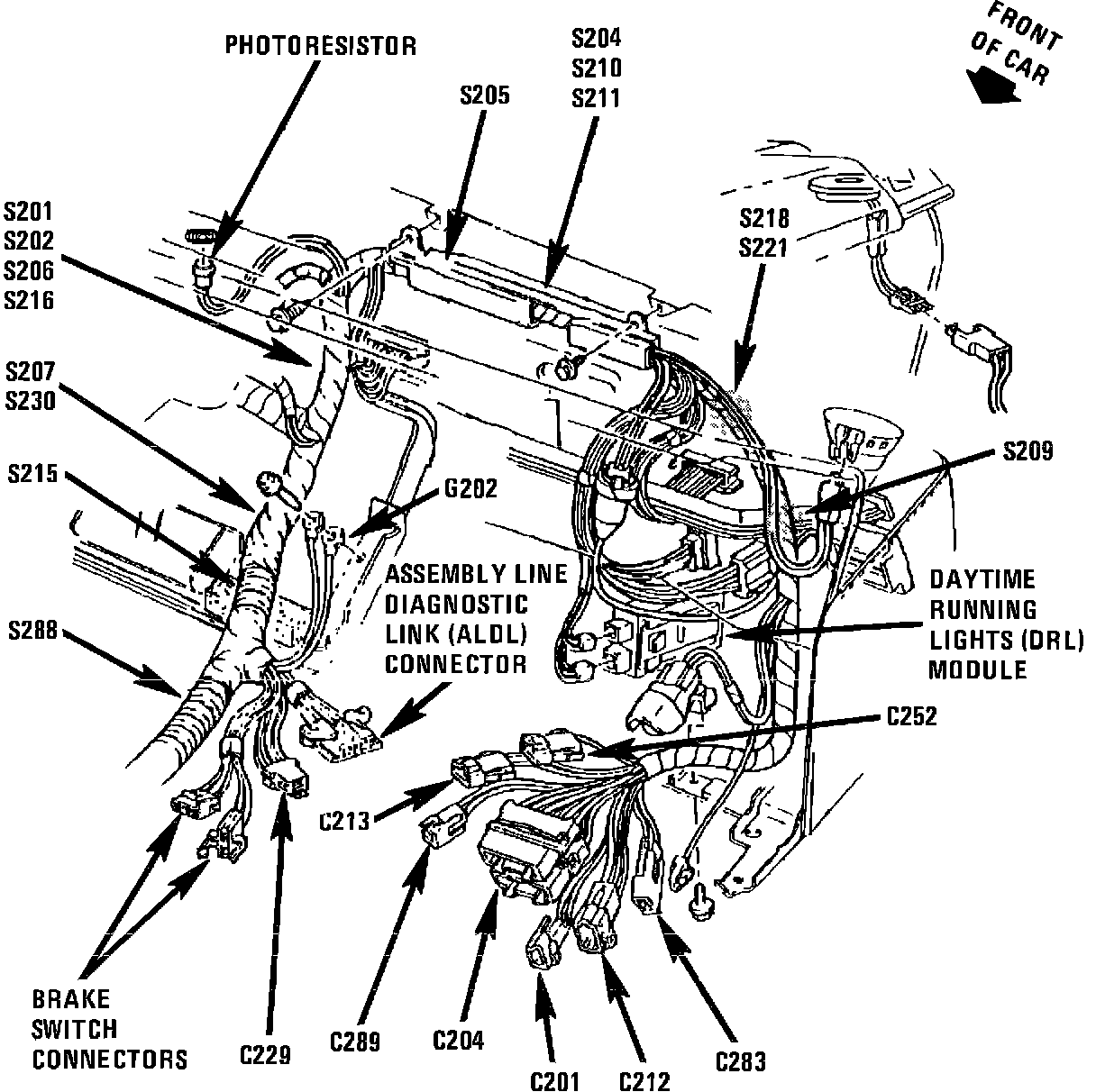

Component Location Views Behind LH Side of I/P:
The Daytime Running Lights Module is located behind I/P, below LH speaker
