Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1992
>>
Cutlass Supreme FWD V6-189 3.1L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Testing and Inspection
>>
Automatic
>>
Air Delivery and Temperature Controls
Air Delivery and Temperature Controls

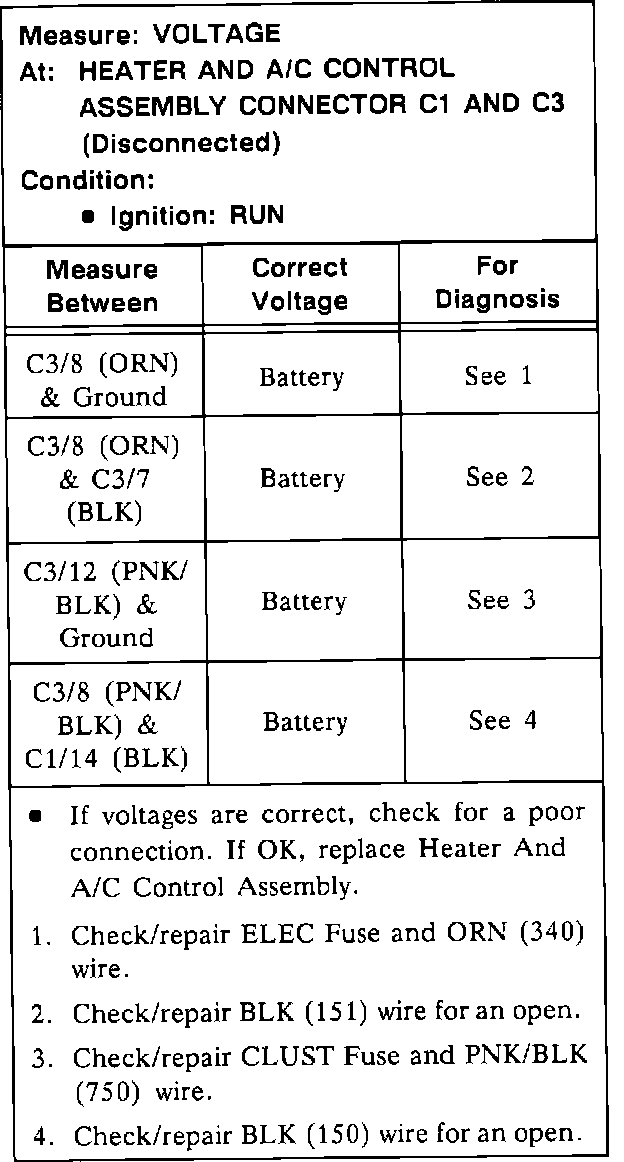

Test E: Heater And A/C Control Assembly Voltage Test:
