Operation CHARM: Car repair manuals for everyone.

Home >> Oldsmobile >> 1992 >> Cutlass Supreme FWD V6-189 3.1L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Testing and Inspection >> Automatic >> Blower Controls

Blower Controls

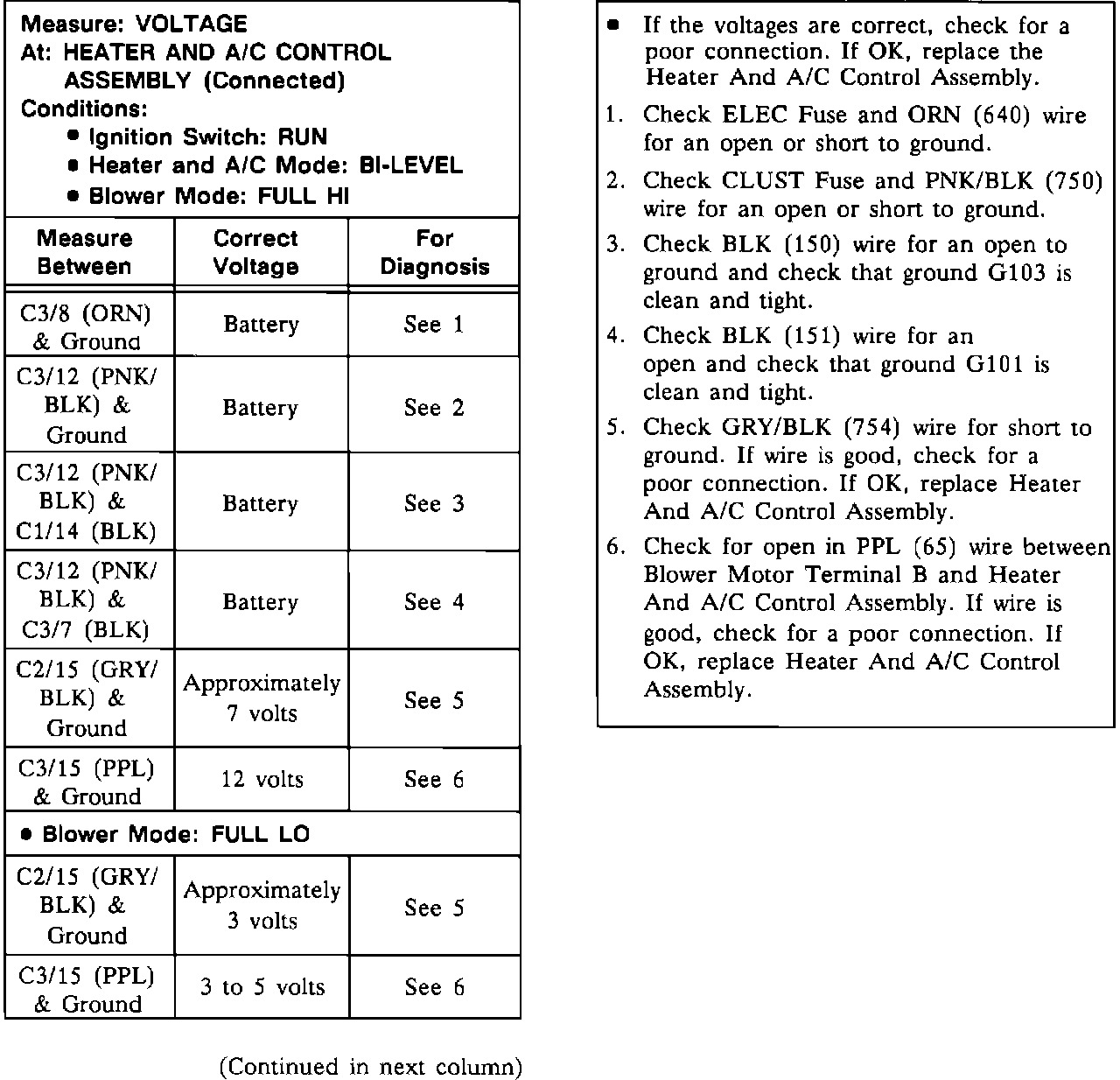

Test C: Heater And A/C Control Assembly Test:
