Air Delivery and Temperature Controls

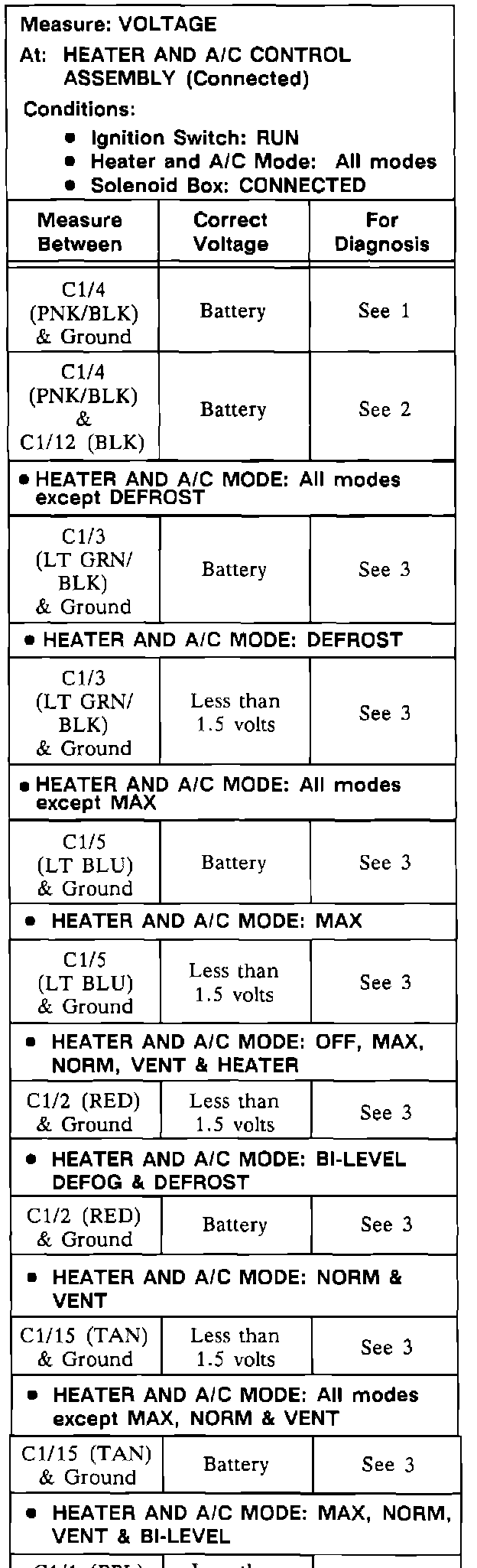

�UITest B: Heater And A/C Control Assembly Solenoid Control Test:
