With RPO C67

A/C: Compressor Controls System Check:

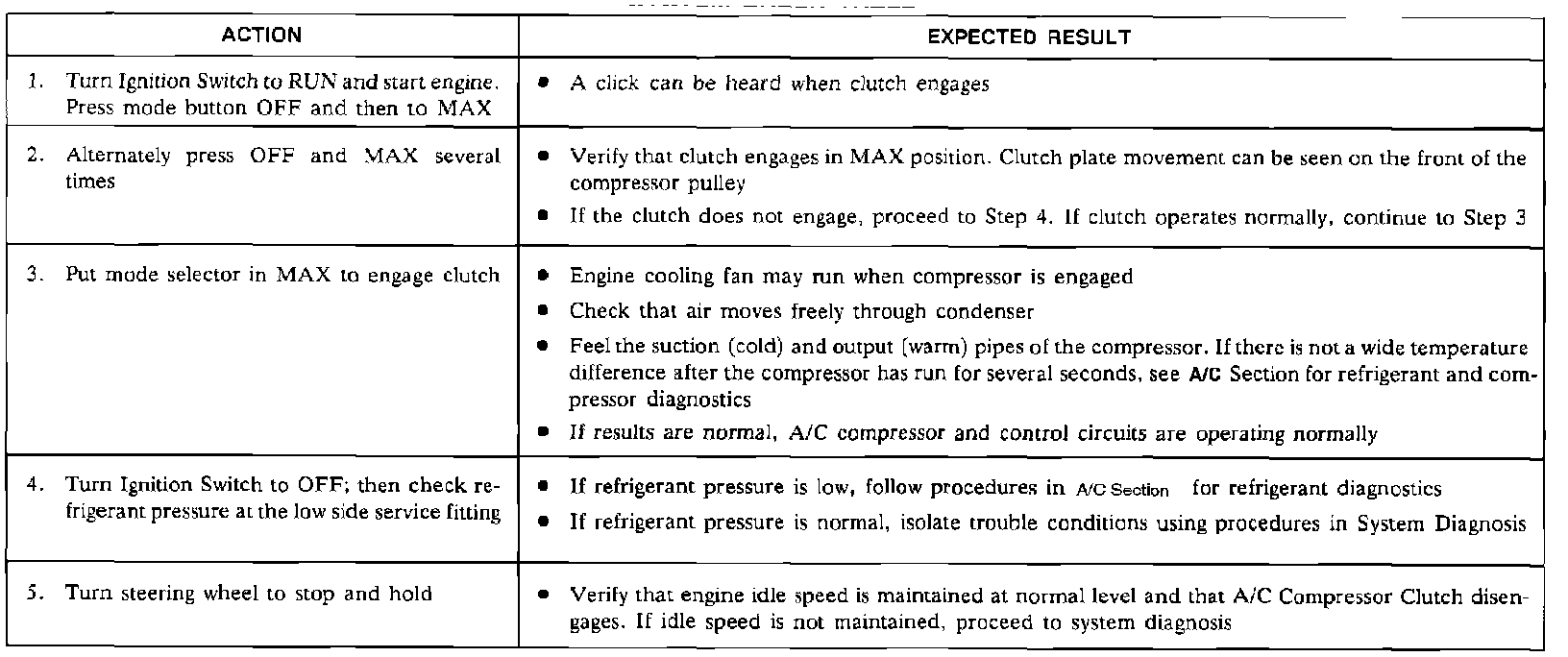

System Check Table

^ Complete the A/C System Check under A/C System Diagnosis as a guide to normal operation of the entire A/C system and for references to diagnostic tests. Testing and Inspection
^ Use the System Check Table as a guide to normal A/C compressor operation.
^ Refer to System Diagnosis when a result is not normal. Testing and Inspection
