Engine Controls - Revised Chart A3, No Start

NUMBER:
92-U-53

CORP.REF.NO:
216516

DATE:
September 1992

SECTION:
6E3, V6



SUBJECT
REVISED CHART A-3


MODELS/YEARS
1991-92 CUTLASS SUPREME WITH 3.1L (VIN T) AND 3.4L (VIN X) ENGINES



This Bulletin contains revisions to Section 6E3 of the 1991-92 "W" Carline Service Manuals The 3.1L (VIN T) and 3.4L (VIN X) Engine Cranks But Will Not Run (Chart A-3) has been revised. These revised pages will replace the current Chart A-3 pages in the following service manuals.

1991 (VIN T, X)
6E3-A-16 & 17
6E3-A-18 & 19
6E3-A-20 & 21


1992 (VIN T, X)
6E3-A-24 & 25
6E3-A-26 & 27
6E3-A-28 & 29

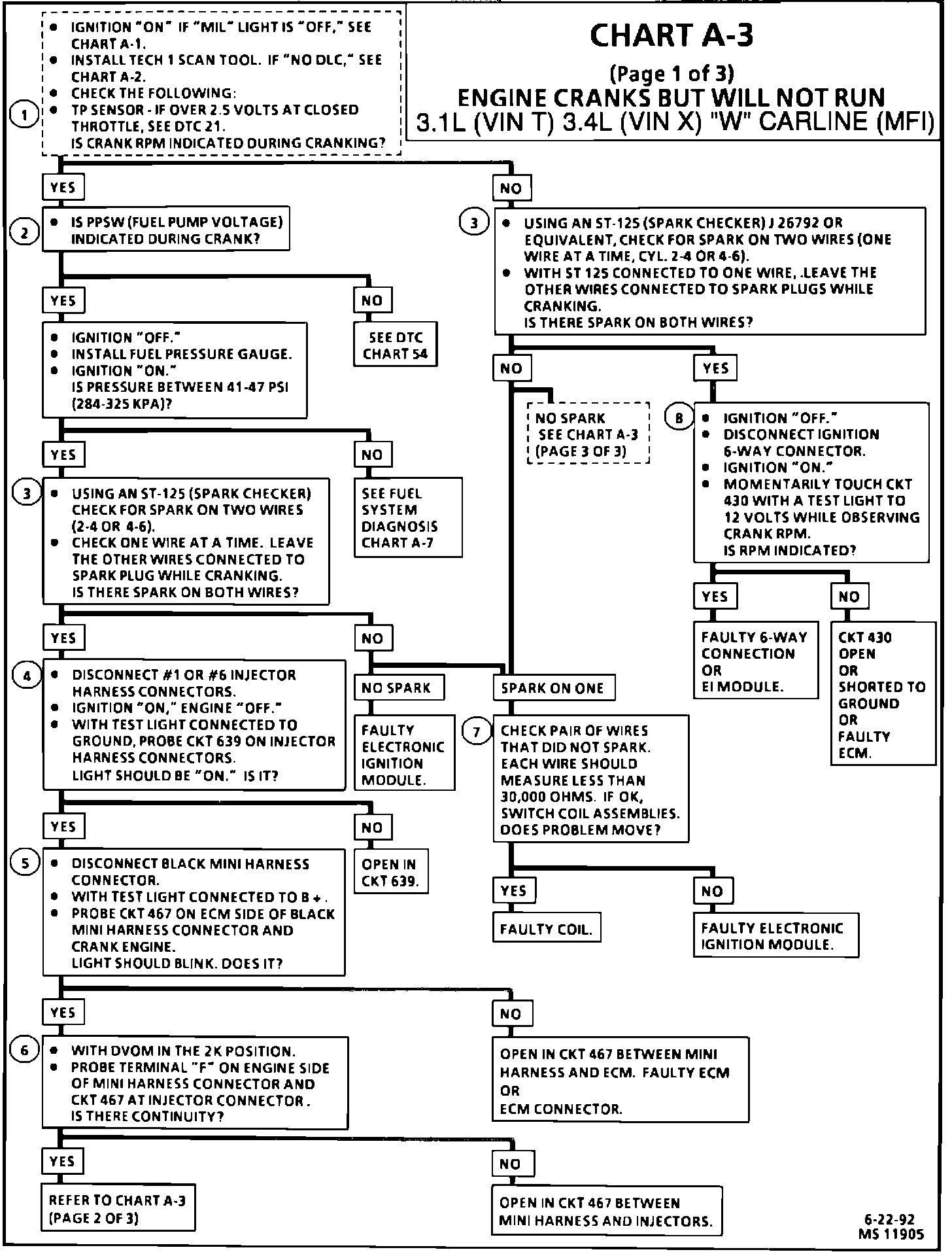

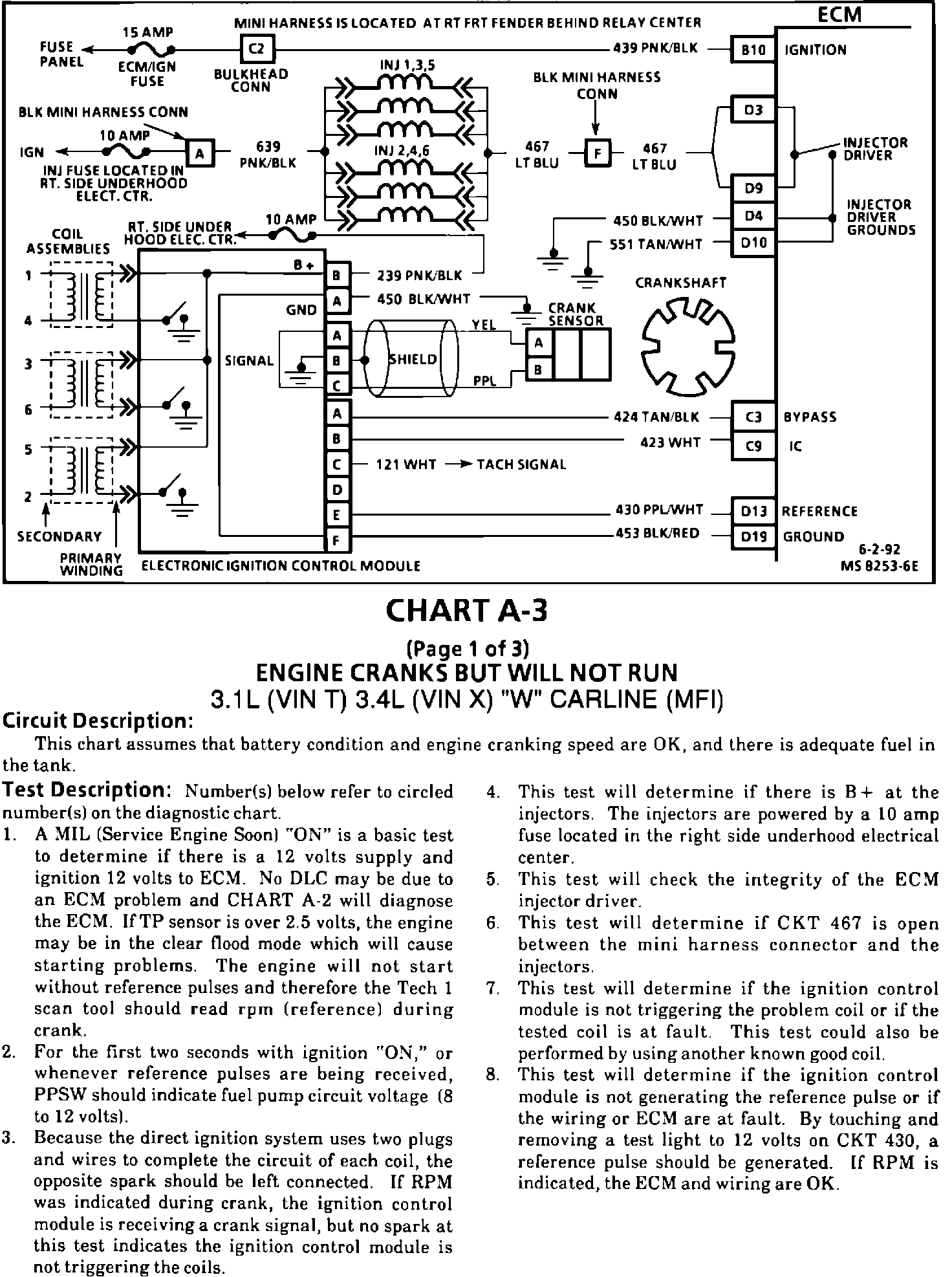

PAGE 1 OF 3 DESCRIPTION AND CHART

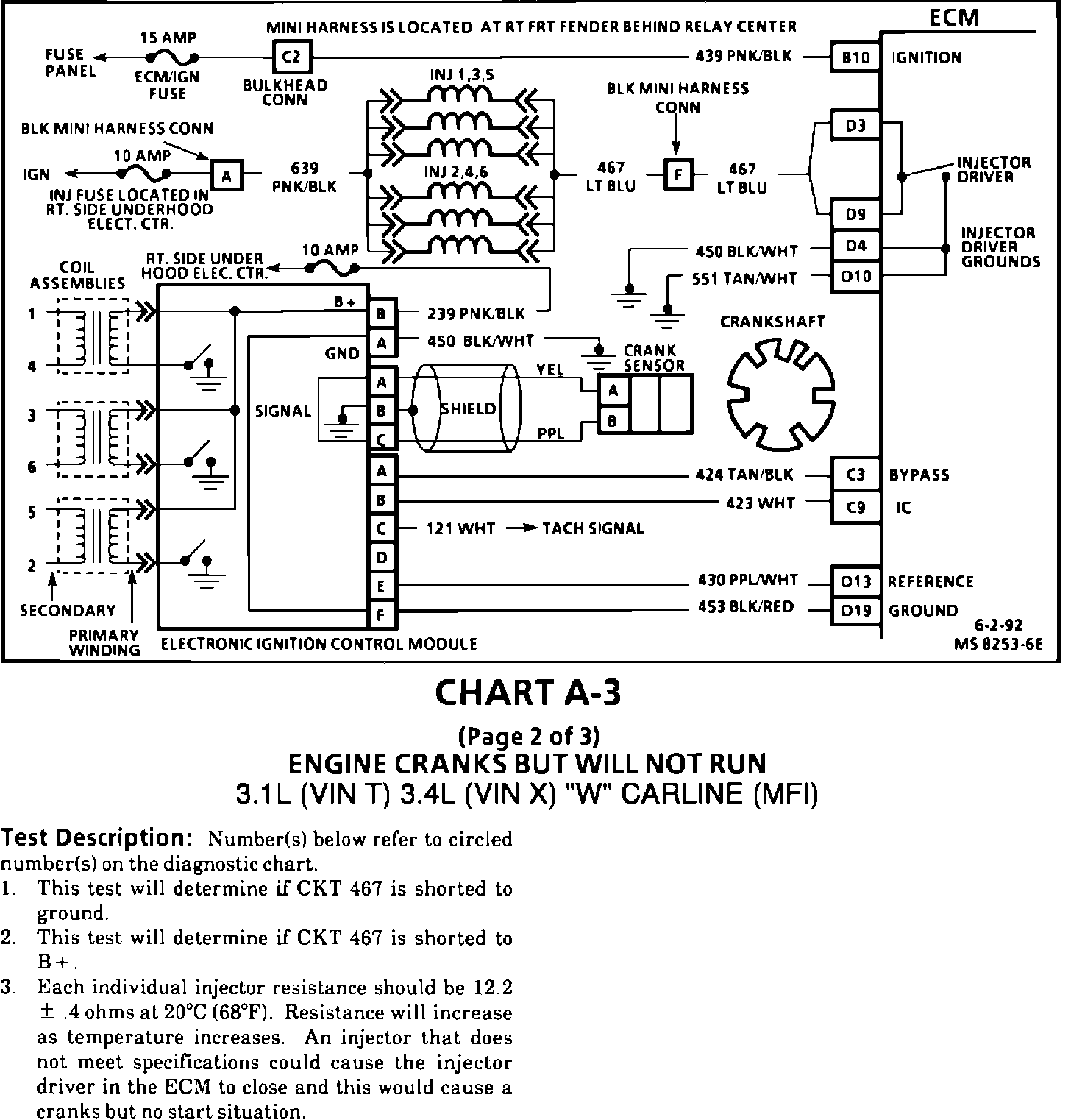

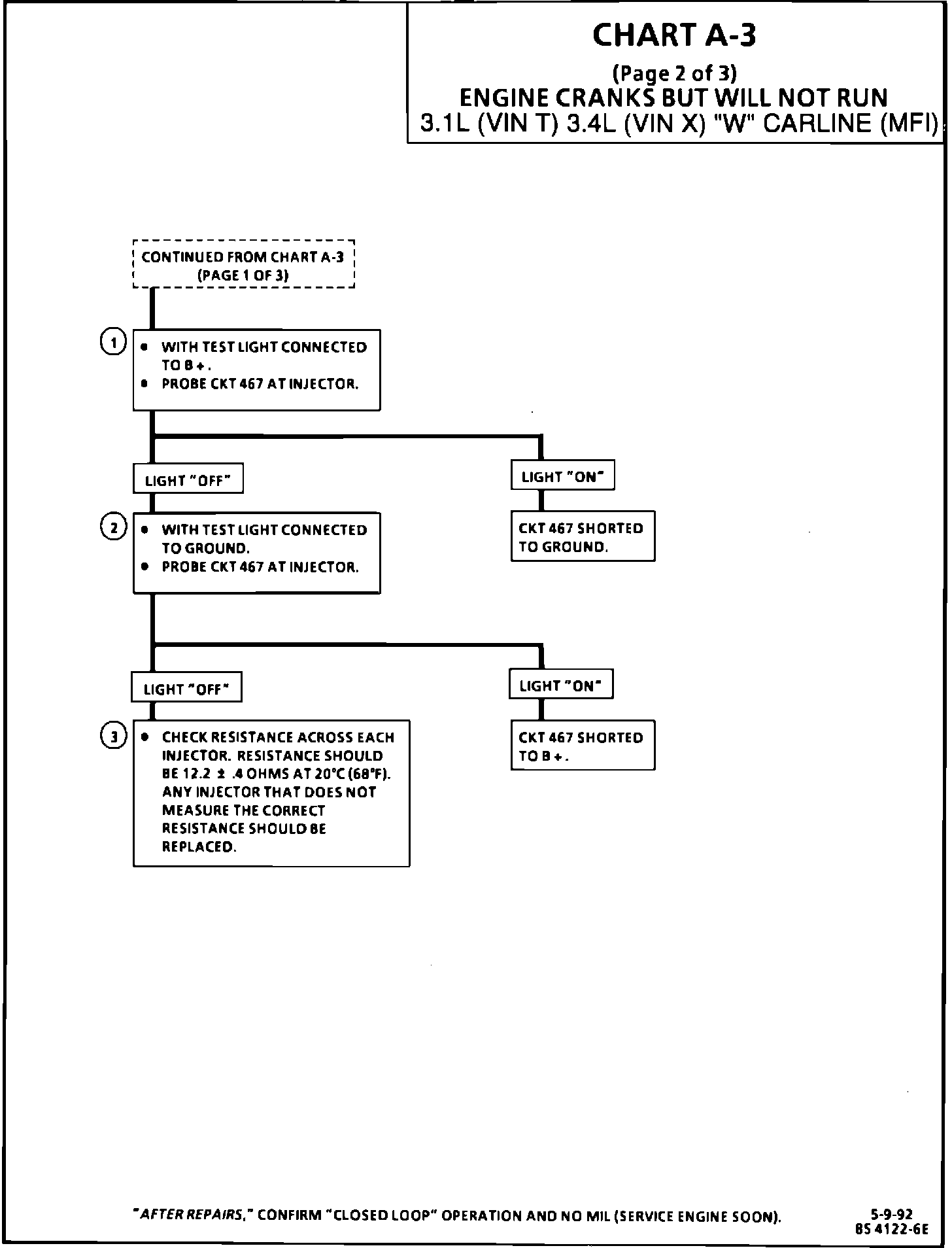

PAGE 2 OF 3 DESCRIPTION AND CHART

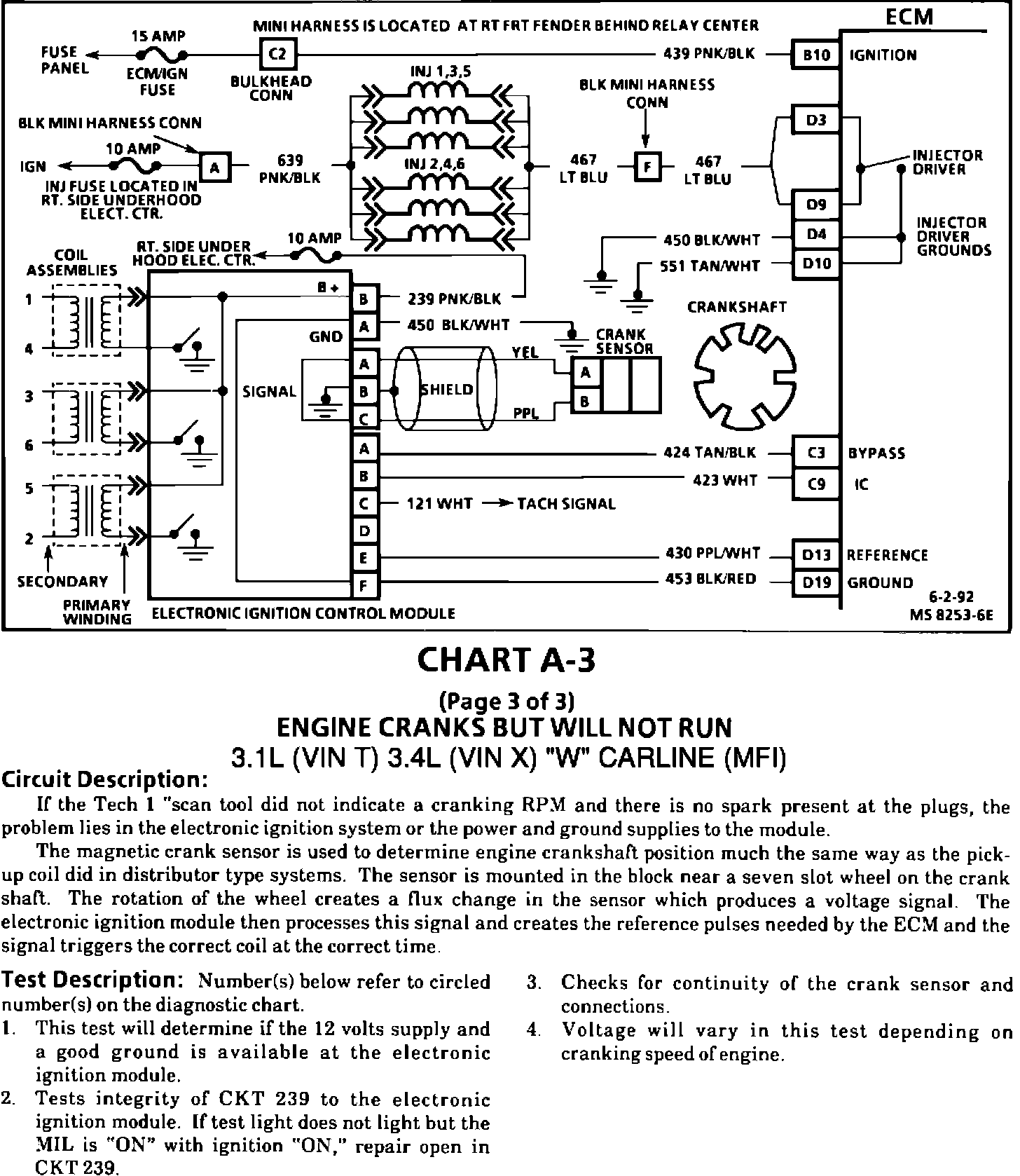

PAGE 3 OF 3 DESCRIPTION AND CHART
