- With Standard Column

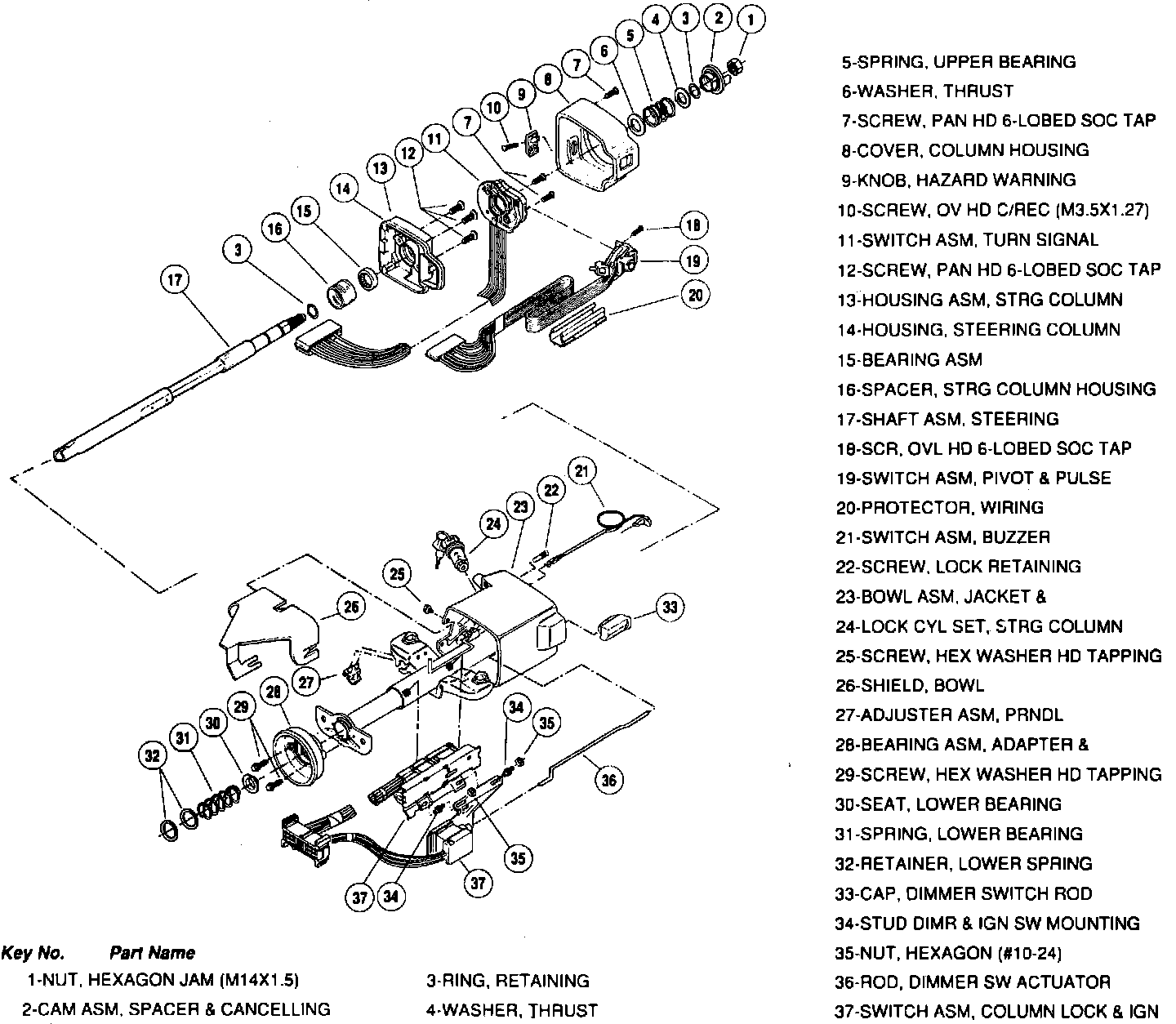

Fig. 87 Exploded View Of Fixed Steering Column.:

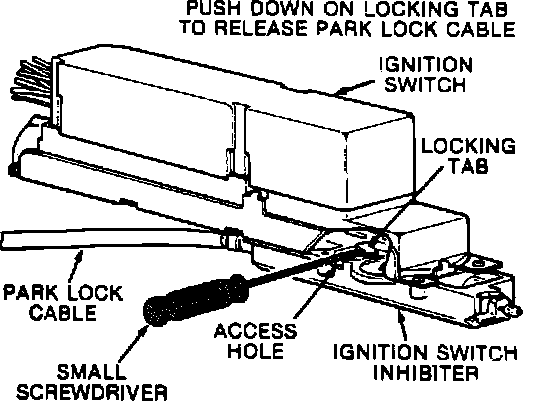

Fig. 88 Disconnecting Park Lock Cable. 1989-91 Cutlass Supreme, Grand Prix, Regal & 1990-91 Lumina W/floor Shift & Automatic Transmission:

Refer to Fig. 87. when servicing this column.
Floor shift models equipped with automatic transmission use an ignition switch inhibitor and park lock cable. On these models, the park lock cable must be disconnected from ignition switch inhibitor before steering column is removed from vehicle. When removal of steering column is necessary, proceed as follows:
1. Lower steering column to floor of vehicle.
2. Remove shield or other upper column housing.
3. Turn column lock cylinder to the On position.
4. Disconnect park lock cable from ignition switch inhibitor with small screwdriver or punch, Fig. 88.

TURN SIGNAL CANCEL CAM ASSEMBLY, PIVOT & PULSE SWITCH ASSEMBLY & TURN SIGNAL SWITCH ASSEMBLY

Disassembly
1. Remove nut retainer, jam nut and steering wheel.
2. Remove turn signal cancel cam assembly, hazard knob screw and hazard warning knob.
3. Position turn signal switch so that signal switch screws and housing cover screw can be removed through openings in switch.
4. Remove housing cover screw and column housing cover.
5. Disconnect wiring protector from opening in instrument panel bracket on jacket and bowl assembly and separate from wires.
6. Disconnect pivot and pulse switch connector from ignition and dimmer switch.
7. Remove pivot switch screw and pivot and pulse switch assembly.
8. Remove turn signal switch screws and disconnect turn signal switch connector from ignition and dimmer switch assembly connector.

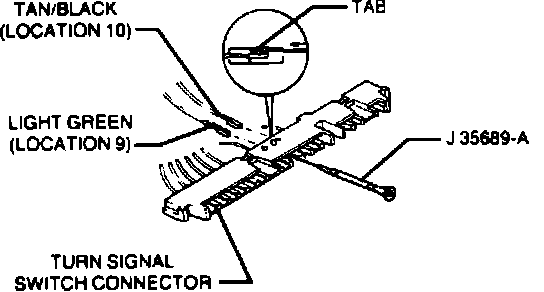

Fig. 62 Disconnecting Switch Wires:

9. Remove seventeen-way lock from turn signal connector and disconnect wires on alarm or buzzer assembly from turn signal connector with special tool No. J 35689-A or equivalent, Fig. 62. Wrap wire ends with tape to protect during removal and installation.
10. Remove turn signal switch assembly from column.

Assembly
1. Install turn signal switch assembly and torque screws to 35 lb in
2. Connect wires from alarm or buzzer assembly to turn signal switch connector.
3. Install seventeen-way secondary lock to turn signal connector and snap in place.
4. Connect turn signal switch connector to ignition and dimmer switch connector and snap in place.
5. Install pivot and pulse switch assembly and torque screw to 18 lb in
6. Connect pivot switch connector to ignition and dimmer switch connector and snap in place.
7. Install wiring protector as follows:
a. Wrap protector around all wires passing through instrument panel bracket opening.
b. Close protector so that interlocking grooves engage and slide protector into instrument panel bracket opening on jacket and bowl assembly and snap in place.
8. Install column housing cover and torque screw to 35 lb in
9. Install hazard warning knob and torque screw to 9 lb in
10. Lubricate bottom side of cancel cam with lithium grease and install turn signal cancel cam assembly.
11. Install steering wheel and jam nut, torque jam nut to 30 lb in and secure with nut retainer.

STEERING SHAFT ASSEMBLY, STEERING COLUMN HOUSING, BEARING ASSEMBLIES, ALARM ASSEMBLY & STEERING COLUMN LOCK CYLINDER.

Disassembly
1. Remove turn signal cancel cam assembly, pivot & pulse switch assembly & turn signal switch assembly as previously described.
2. Remove two lower spring retainers and discard.
3. Remove lower bearing spring and lower bearing seat.
4. Remove adapter screws, adapter and lower bearing assembly.
5. Turn lock cylinder to the Run position.
6. Place opening in retaining ring over flat on steering shaft, then remove retaining ring with a screwdriver and discard.
7. Remove thrust washer, upper bearing spring and washer.
8. Remove steering shaft from lower end of jacket and bowl assembly.
9. Remove housing screws and column housing.
10. Remove housing spacer and bearing with drift and discard.
11. Turn lock cylinder to the Off-Lock position and remove key.
12. Remove alarm assembly by lifting alarm tab with a screwdriver and gently pulling wires to remove.
13. Remove lock retaining screw and lock cylinder.
14. Remove rod cap from dimmer switch rod and jacket and bowl assembly.

Assembly
1. Install rod cap into jacket and bowl assembly.
2. Install lock cylinder and torque retaining retaining screw to 27 lb in
3. Install alarm assembly by pushing down into retaining bore until bottomed with plastic tab covering lock retaining screw.
4. Lubricate bearing with lithium grease and press into housing with a 1 1/2 inch socket until bottomed.
5. Install housing spacer and column housing and torque screw to 88 lb in
6. Turn lock cylinder to the Run position and insert steering shaft into the lower end of jacket and bowl assembly until shaft rests against bearing. The shaft will extend 2 1/2 inches beyond the highest surface of column housing when installed properly.
7. Install thrust washer, upper bearing spring and thrust washer.
8. Wrap a two inch wide piece of shim stock .005 inch, around the shaft and slip a new retaining ring up to the thrust washer. Use two long handled screwdrivers and push on retaining ring until it seats in the retainer ring groove in shaft. Discard shim stock.
9. Install adapter and lower bearing assembly and torque adapter screws to 27 lb in
10. Install lower bearing seat and lower bearing spring.
11. Install two new lower spring retainers and compress spring until retainers are positioned 1.14 inch from lower end of steering shaft.
12. Perform assembly steps for turn signal cancel cam assembly, pivot & pulse switch assembly & turn signal switch assembly as previously described.

IGNITION & DIMMER SWITCH ASSEMBLY

Disassembly
1. Place shift lever in the Park position and lock cylinder in the Off position.
2. Remove steering column from vehicle.
3. Disconnect turn signal switch and pivot and pulse switch connectors from ignition and dimmer switch assembly connector.
4. Remove bowl shield screw and nut and remove bowl shield.
5. Remove dimmer and ignition switch assembly as follows:
a. Remove dimmer switch nut, upper mounting stud, then dimmer switch.
b. Remove lower mounting stud and ignition switch from ignition switch actuator rod.
6. Remove dimmer switch actuator rod from rod cap.

Assembly

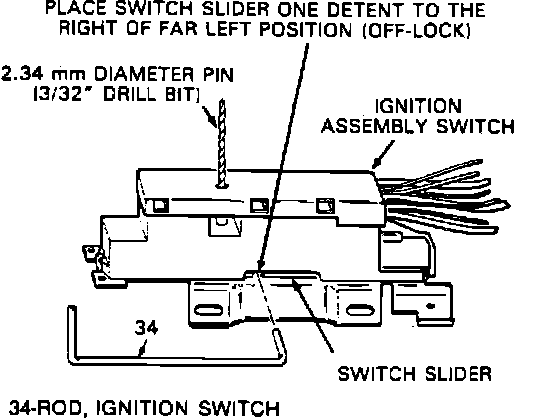

Fig. 89 Installing Ignition Switch & Actuator:

1. Place the ignition switch slider in the far left position and move back one detent to the right, Off-Lock position. Fig. 89.
2. Insert a 3/32 inch drill bit into the adjustment hole on ignition switch to hold switch slider in proper position during installation.
3. Install ignition switch to switch rod.
4. Install ignition switch to jacket and bowl assembly with lower mounting stud and torque stud to 35 lb in
5. Remove drill bit from ignition switch and install dimmer switch actuator rod, tab first, through hole in instrument panel bracket and hole in dimmer switch rod cap.
6. Tab on rod must engage wide slot in rod cap and snap in place.
7. Install dimmer switch onto actuator rod and dimmer switch assembly on lower mounting stud with dimmer switch nut and upper mounting stud.

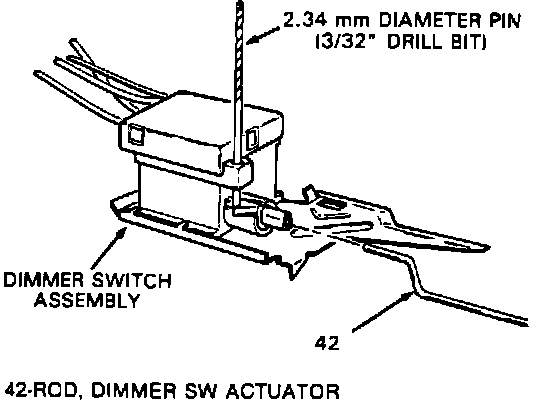

Fig. 90 Adjusting Dimmer Switch. 1989-91 Cutlass Supreme, Grand Prix, Regal & 1990-91 Lumina:

8. Adjust dimmer switch by inserting a 3/32 inch drill bit through hole in switch and push switch against actuator rod to remove all lash. Fig. 90.
9. Torque dimmer switch nut and upper mounting stud to 35 lb in
10. Install shield screw and bowl shield nut and torque shield screw to 53 lb in and bowl shield nut to 35 lb in
11. Connect turn signal switch and pivot and pulse switch connectors to ignition and dimmer switch connector and snap in place.
