Front Camber Adjustment

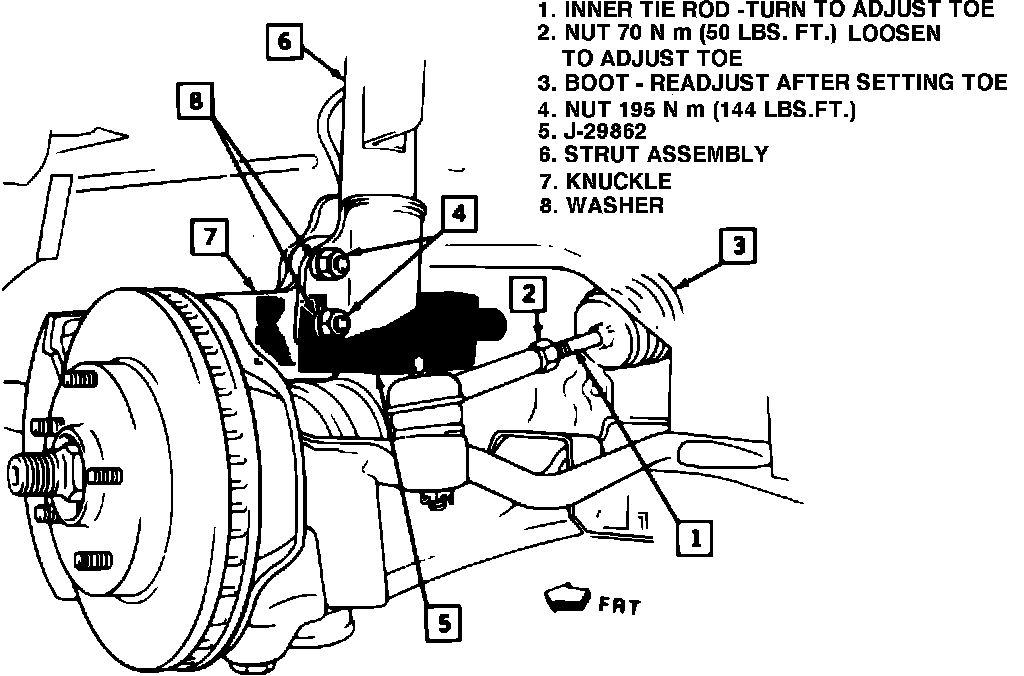

Fig. 4 Camber Adjustment:

1. Loosen both strut to knuckle attaching nuts, Fig. 4.
2. Install camber adjusting tool J-29862.
3. Set camber to specifications.
4. Remove adjusting tool and torque strut to knuckle attaching nuts to 144 ft. lbs.
5. Recheck camber.
