Starter Motor: Locations

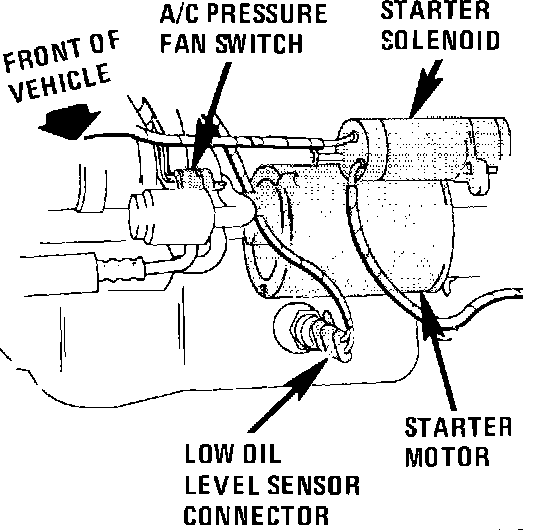

Component Location View. Lower LH Front of Engine:





Lower LH front of engine
