A055

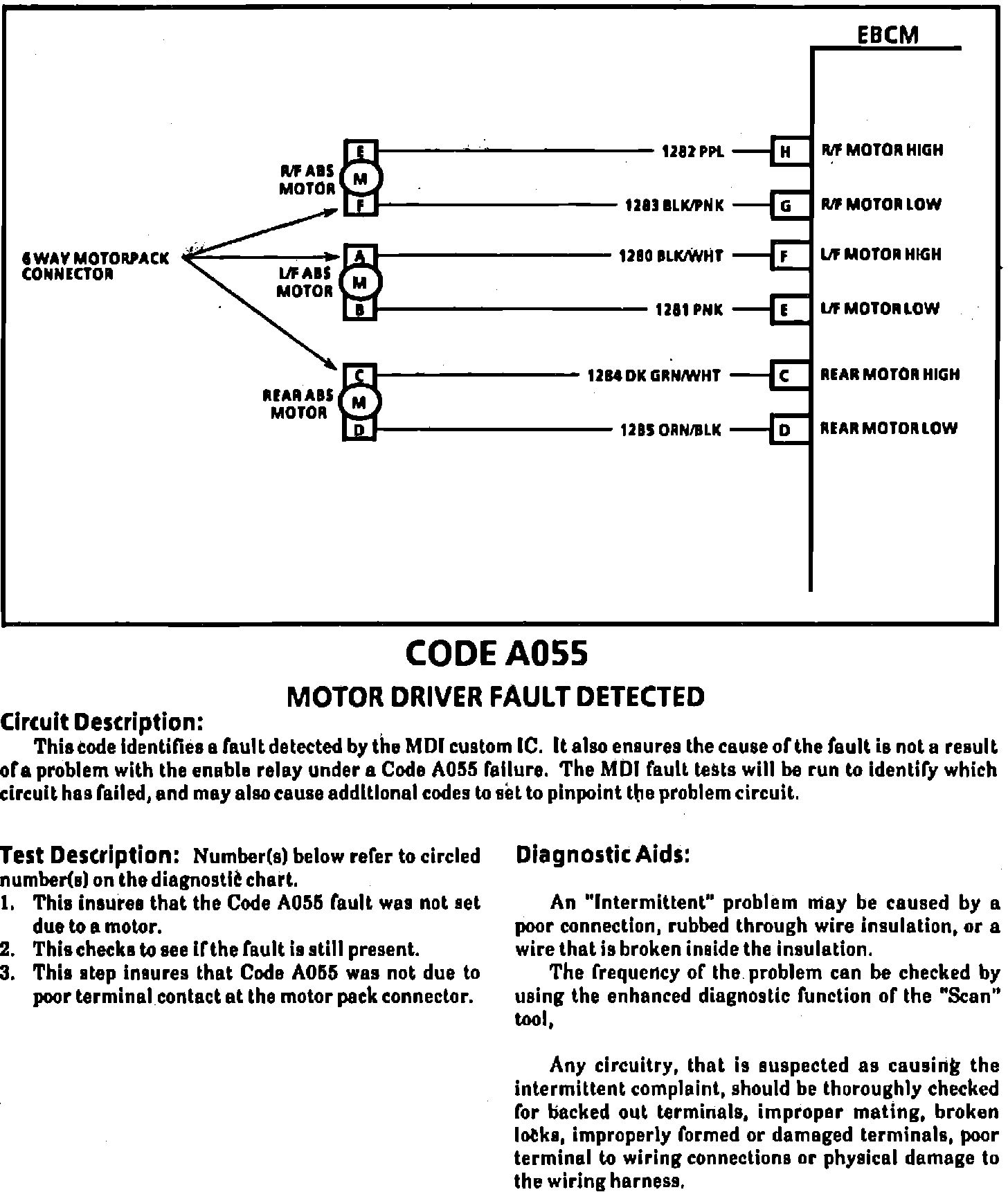

Fig. 43 Code A055 (Motor Driver Fault Detected, Part 1 Of 2):



Fig. 43 Code A055 (Motor Driver Fault Detected, Part 2 Of 2):
