A064

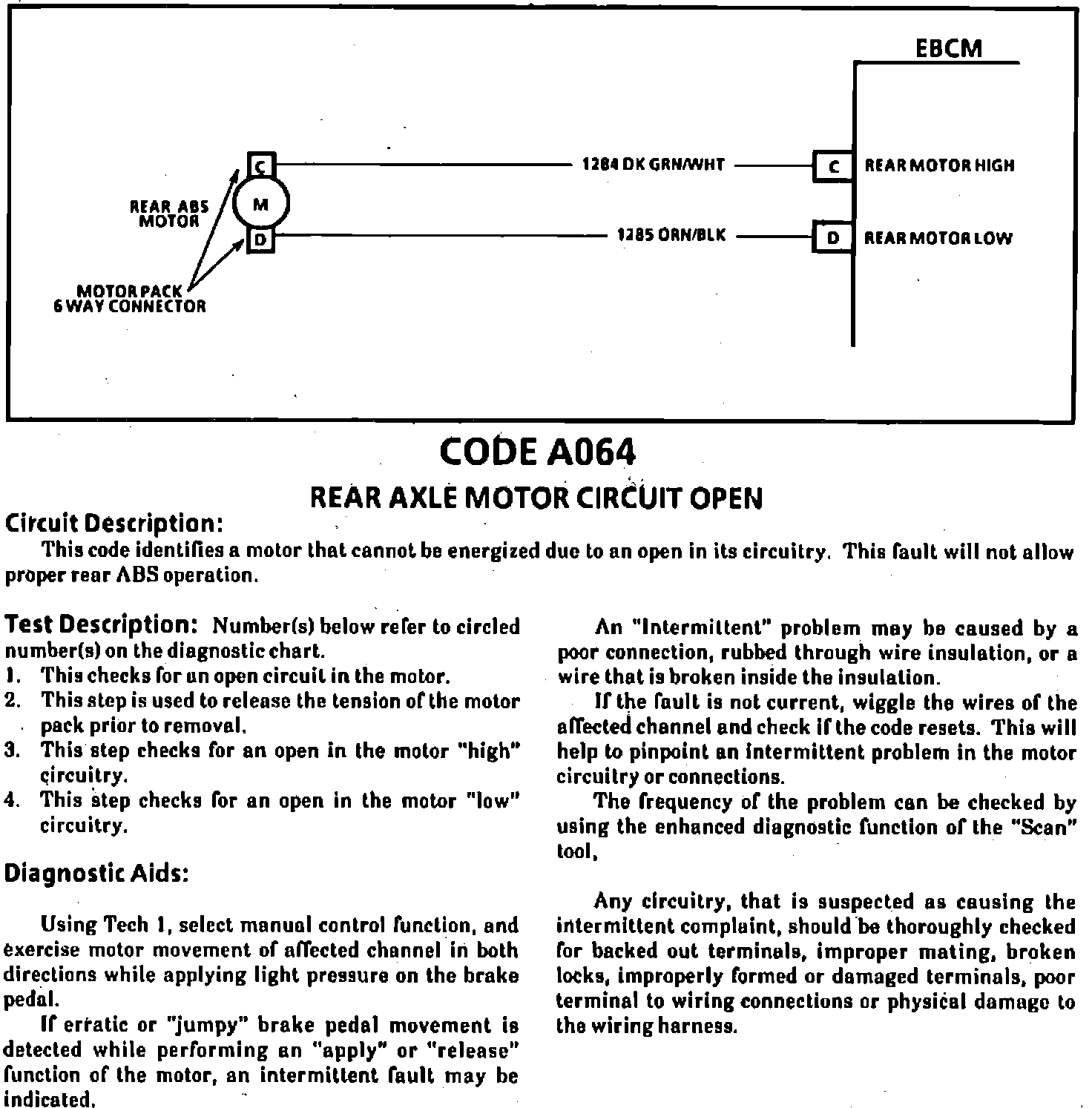

Fig. 50 Code A064 (Rear Axle Motor Circuit Open, Part 1 Of 2):



Fig. 50 Code A064 (Rear Axle Motor Circuit Open, Part 2 Of 2):
