Tools - Windshield Wiper Arm Removal

File In Section: 8 - Chassis/Body Electrical

Bulletin No.: 43-82-09

Date: January, 1995

Subject:
Section 8E - Tool Revision for Windshield Wiper Arm Removal

Models:
1990-95 Chevrolet Lumina Minivan
1990-95 Oldsmobile Silhouette
1990-95 Pontiac Transport

This bulletin contains revisions to Section 8E.

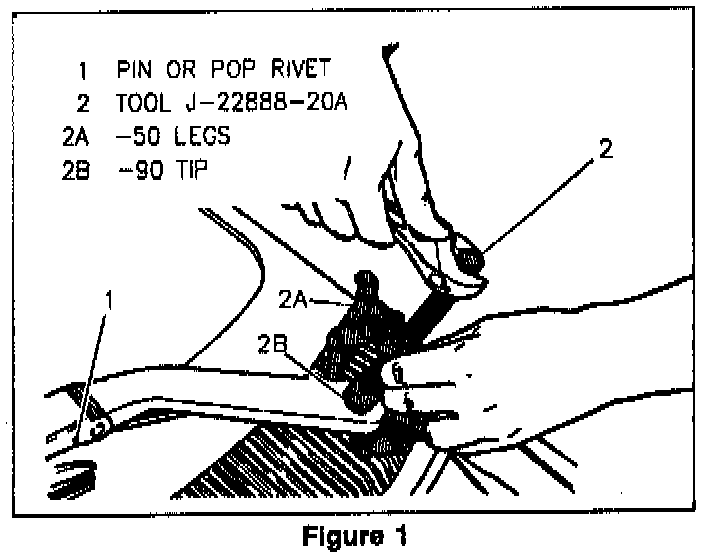

Section 8E-8 "Wiper Arm Replacement" procedure should read "Remove wiper arm assembly from drive shaft using puller J-22555-20A, with (-50) legs and (-90) tip," see Figure 1.
