Compressor Clutch Relay: Locations

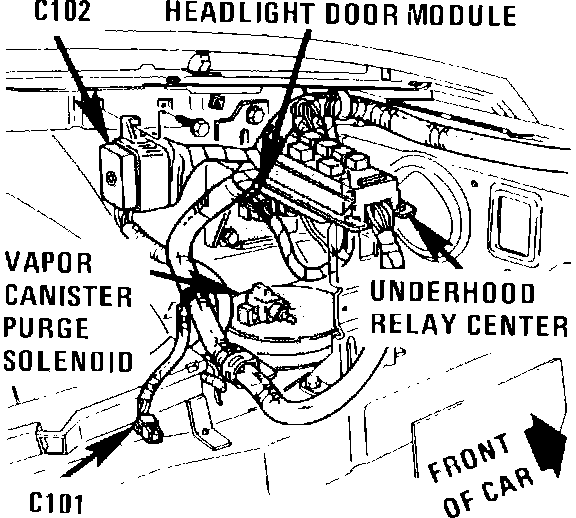

Relay Center And Canister Purge Valve Location:

RELAY CENTER AND CANISTER PURGE SOLENOID

COMPONENTS
Underhood Relay Center
Vapor Canister and Purge Solenoid

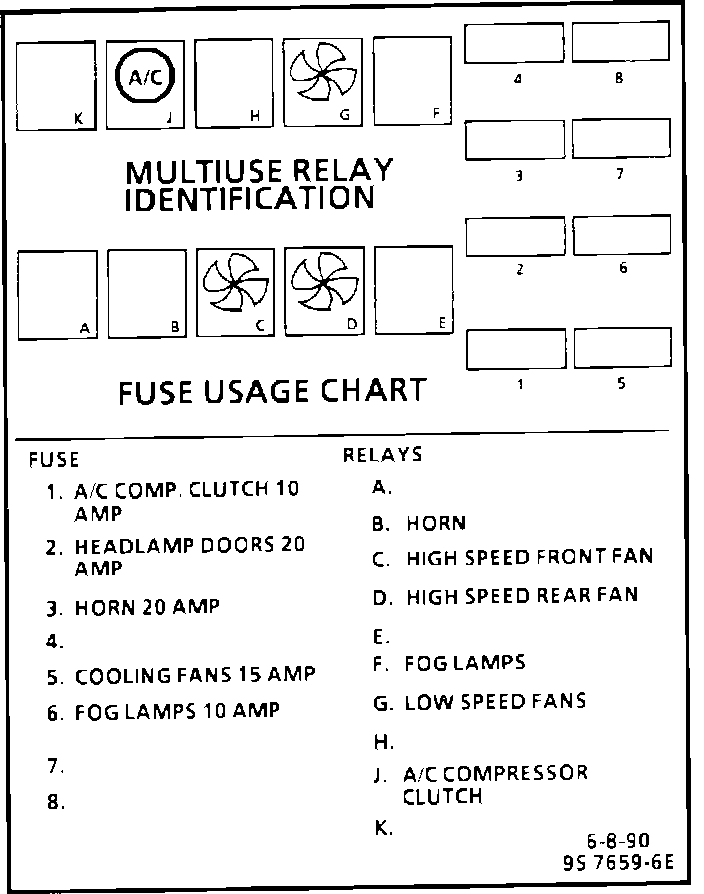

Underhood Relay Center Details:

RELAY CENTER DETAILS

RELAYS
A/C Compressor Clutch Relay
Horn relay
High Speed Front (pusher) Fan Relay
High Speed Front (puller) Fan Relay
Fog lamp Relay
Low Speed Cooling Fan Relay


FUSES
A/C Compressor Clutch Fuse (10A)
Headlamp Doors Fuse (20A)
Cooling Fans Fuse (15A)
Horn Fuse (20A)
Fog Lamps Fuse (10A)
