A/C - Revised System Performance Test

9232oldsmobile02

NUMBER: 92-U-43

CORP.REF.NO: 211203

DATE: May 1992

SECTION: 1B, 1C


SUBJECT:
A/C SYSTEM PERFORMANCE TEST


MODELS/YEARS:
1991-92 TORONADO/TROFEO


The following pages are revisions to the 1991 and 1992 Toronado/Trofeo Service Manual and include the addition of an A/C system performance test.





CLIMATE CONTROL SYSTEM CHECK

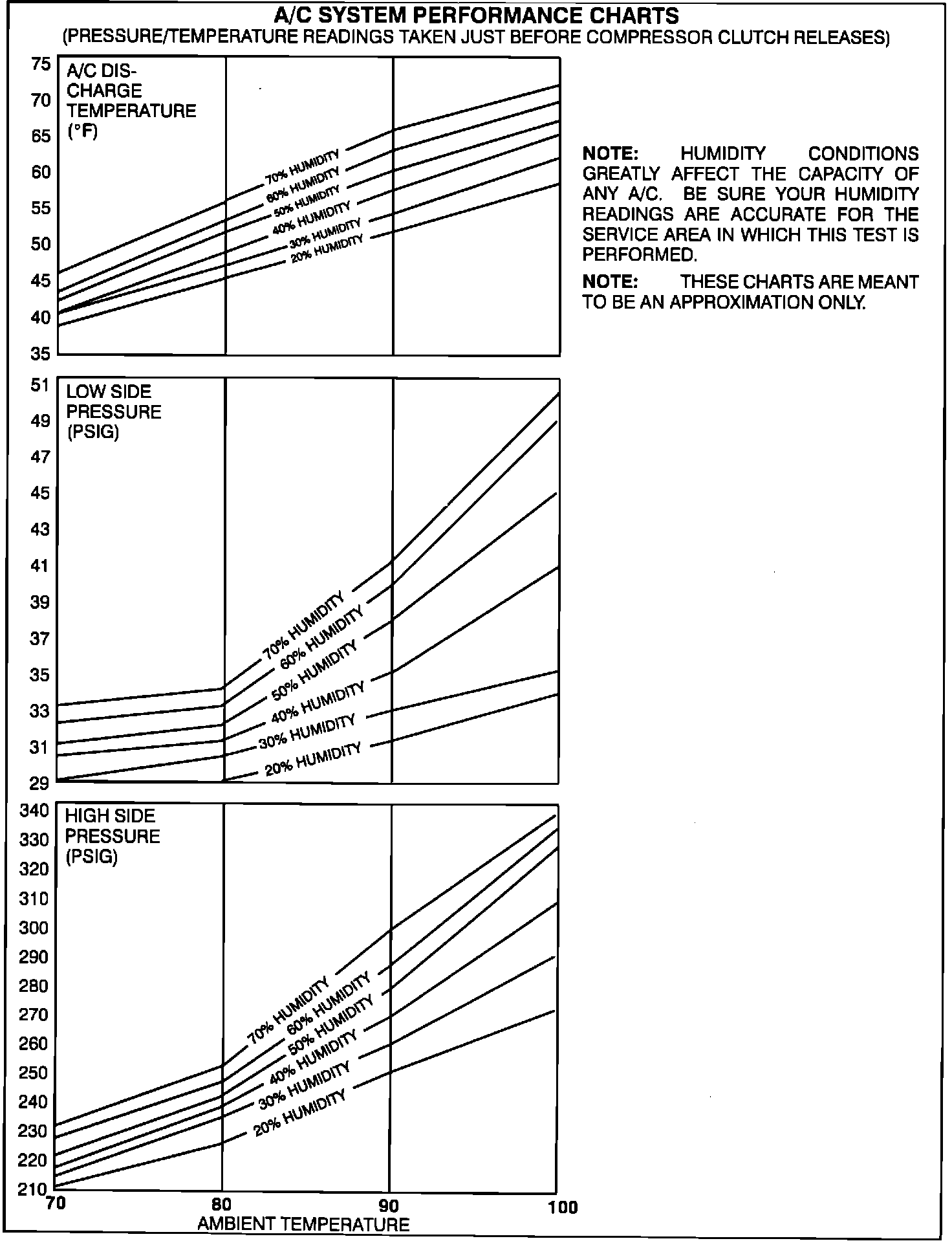

A/C SYSTEM PERFORMANCE CHARTS

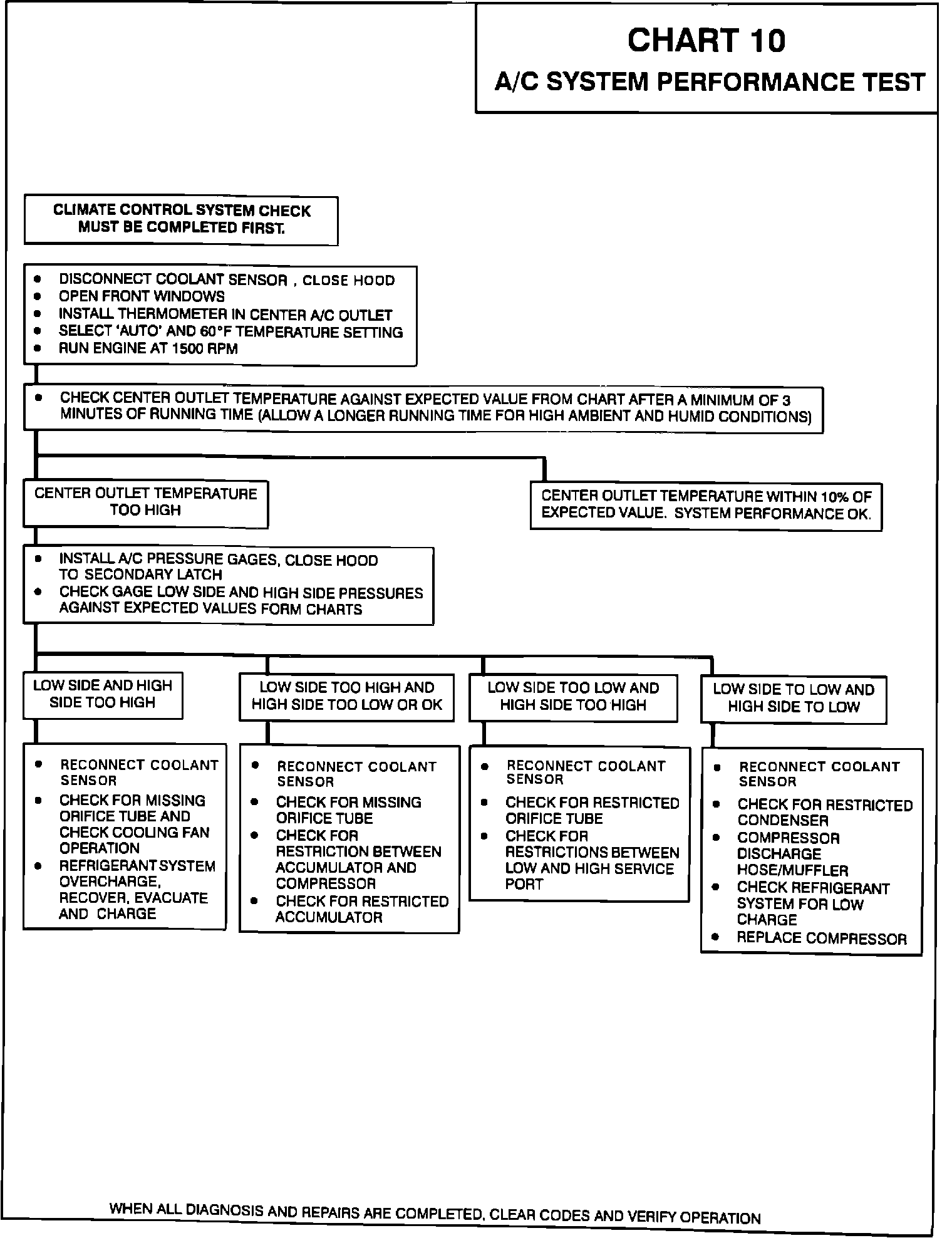

CHART 10 - A/C SYSTEM PERFORMANCE TEST
