Lock Cylinder

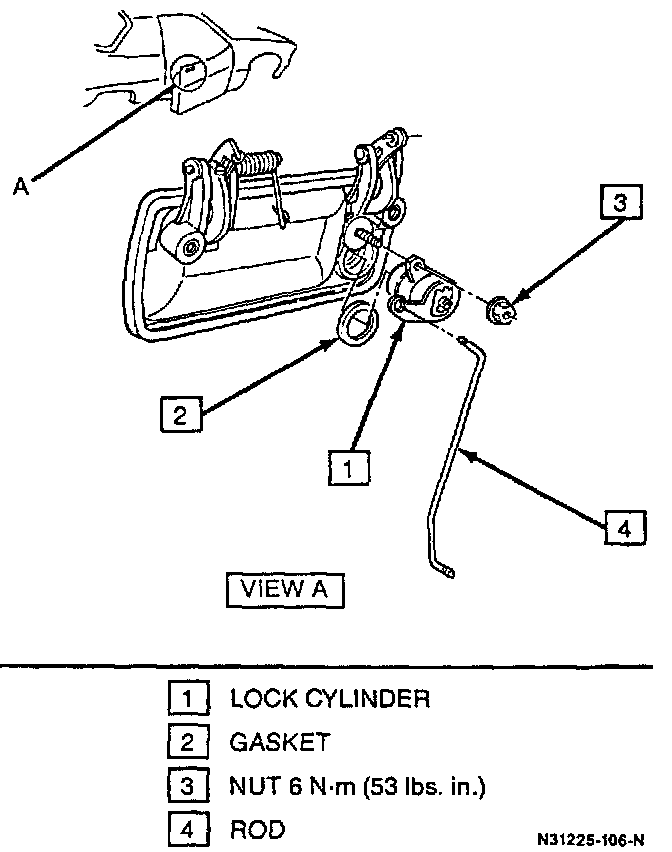

Door Lock Cylinder:

Remove or Disconnect

Important
^ Glass must be in the full-up position.

1. Door trim panel.
2. Water deflector.
3. Rod (4).
4. Nut (3).
5. Lock cylinder (1).
6. Gasket (2).

Install or Connect

1. Gasket (2).
2. Lock cylinder (1).
3. Nut (3) to 6 N.m (53 lbs. in.).
4. Rod (4).
5. Water deflector.
6. Trim panel.
