Installation

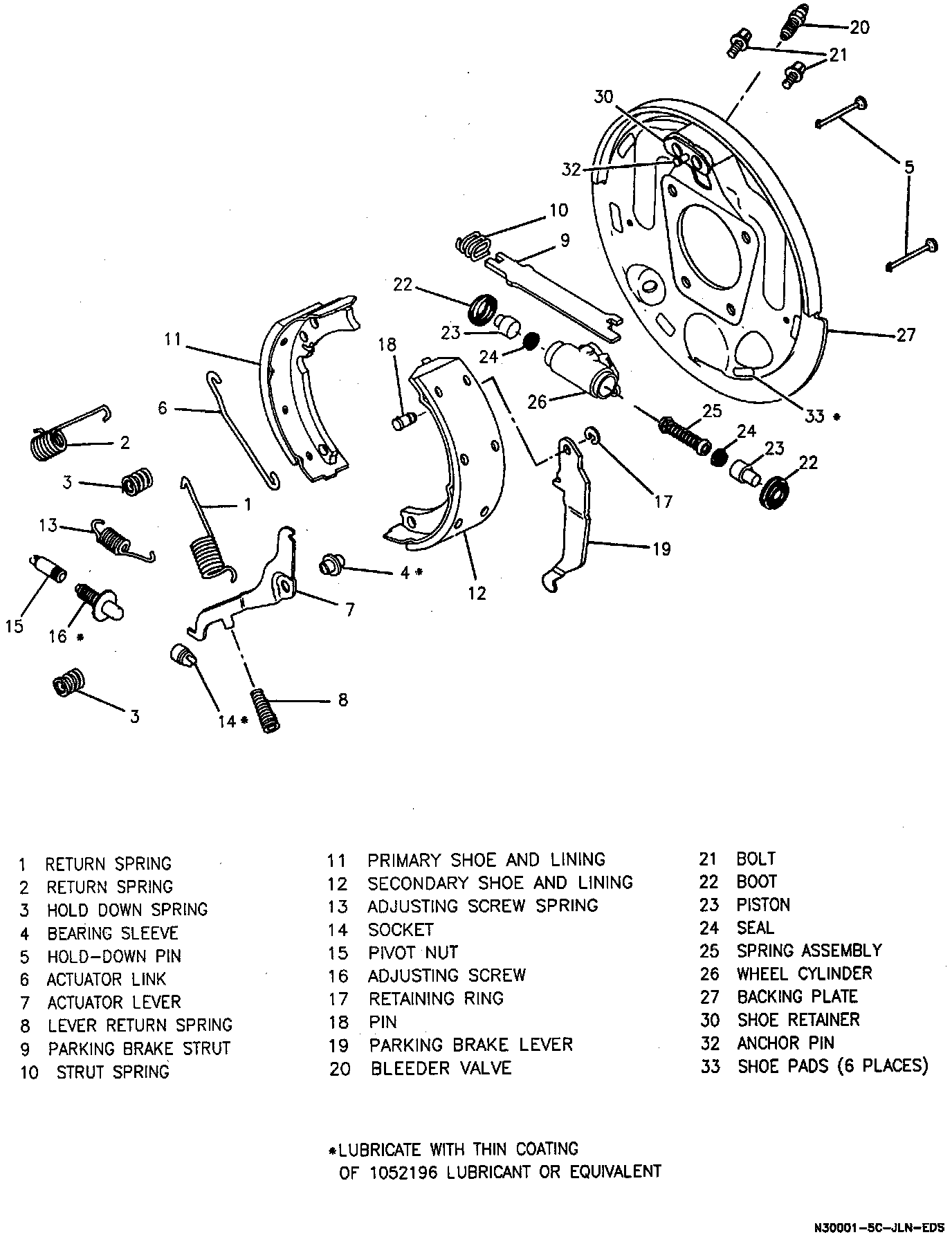

Brake Components:

- Install backing plate to axle assembly.
- Install hub and bearing assembly to rear axle. Hub and Bearing Assembly
- Install parking brake cable to backing plate.
- Install brake pipe to wheel cylinder. Installation
- Install brake components. [1][2]Brake Drum
- Bleed the brake hydraulic system. Service and Repair
- Adjust rear brake assembly. Adjustments
- Adjust parking brake. Parking Brake System
