Diagnostic Charts

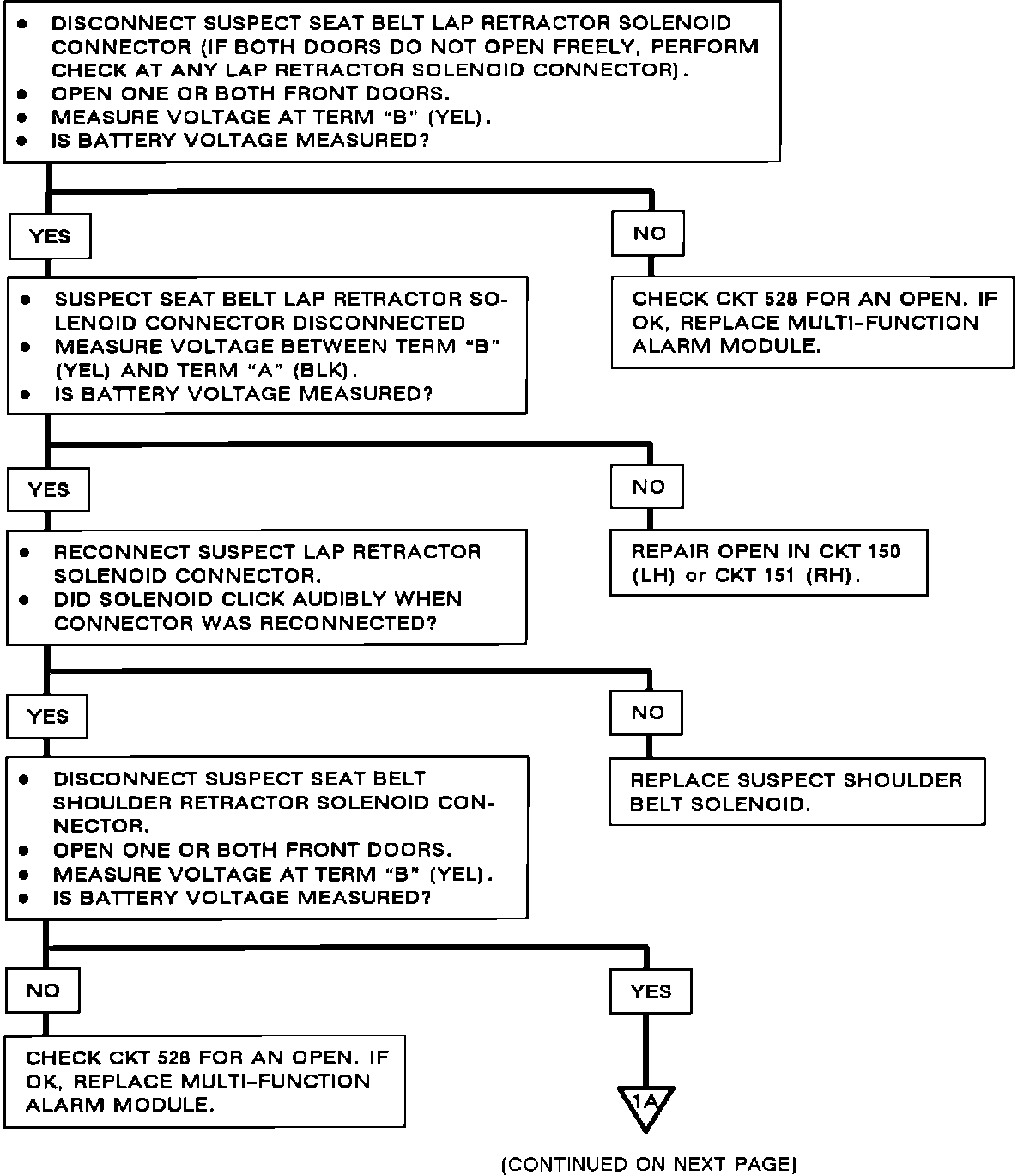

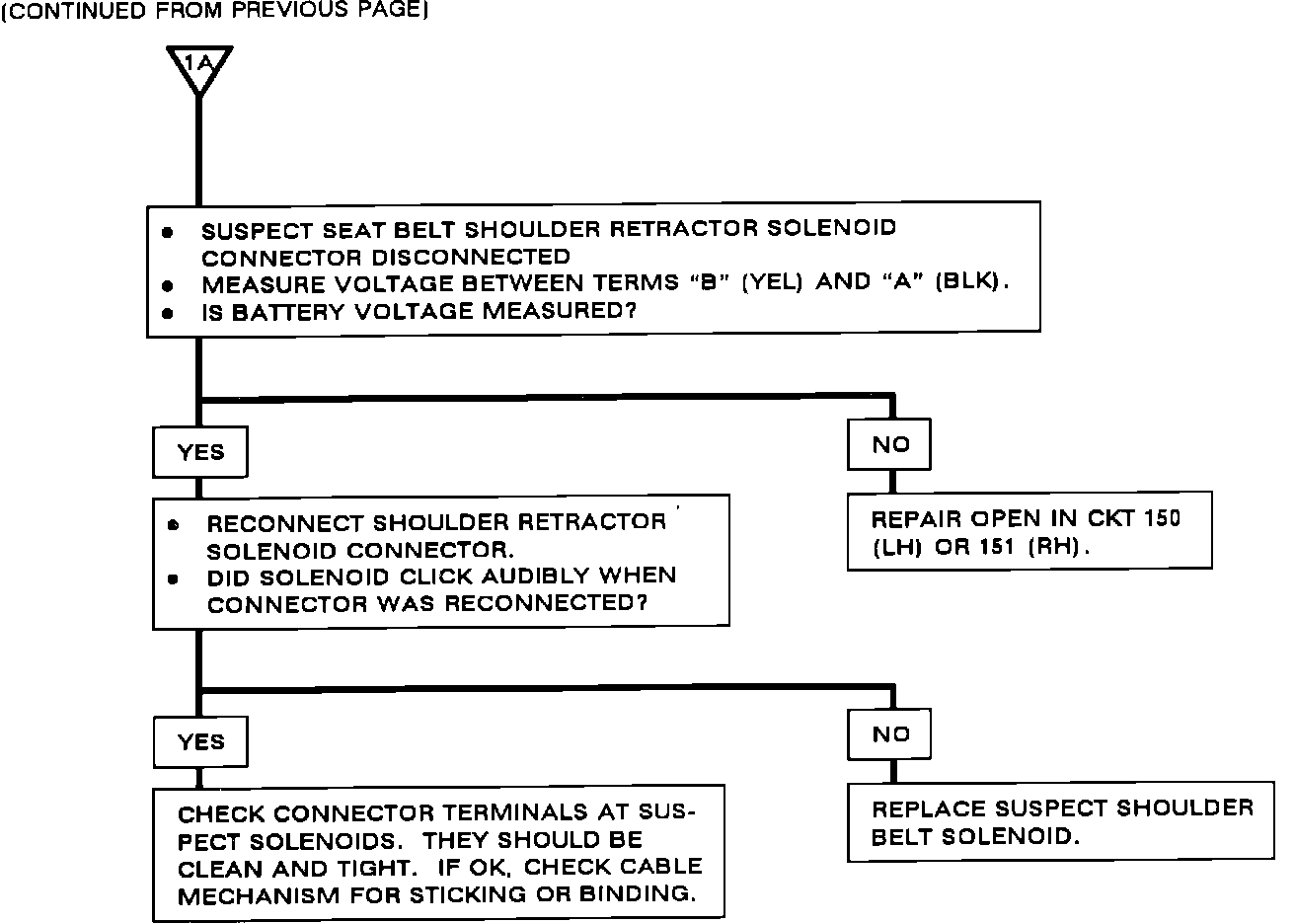

Chart #1 - Fasten Belts Indicator Operates Normally But One Or Both Doors Do Not Open Freely:



Chart #1 - Fasten Belts Indicator Operates Normally But One Or Both Doors Do Not Open Freely:
