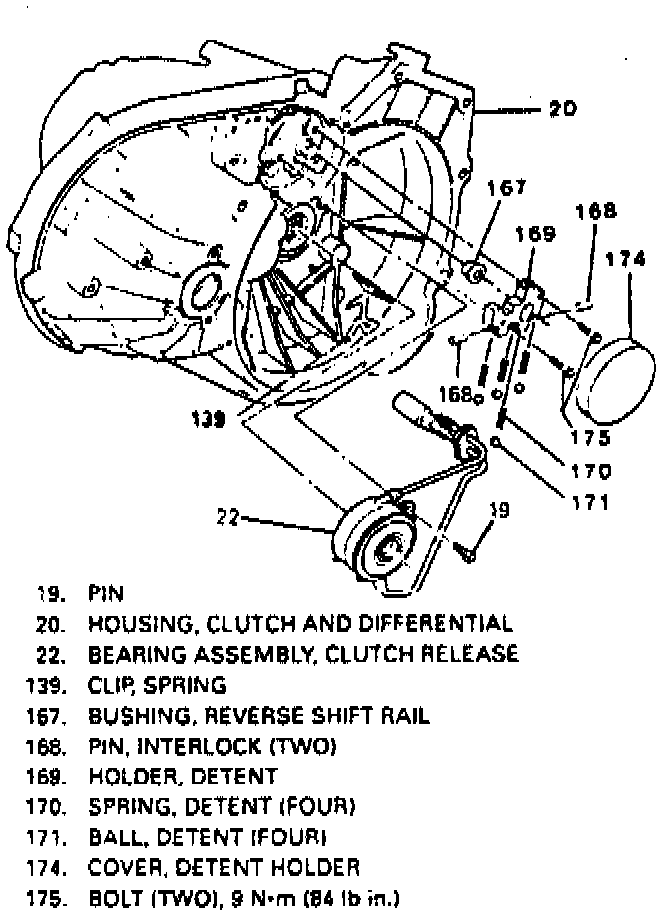

Shift Rail Detent/Clutch & Differential Housing






1. Remove pin (19).

2. Remove bearing (22), then the detent holder cover (174) by puncturing middle of cover and prying off with roll type pry bar.

3. Remove attaching bolts (175).

4. Remove holder, detent (169), springs (170) and interlock-pins (168).

5. Remove balls and detent (171).

6. Remove bushing (167) from assembly using two small pry bars to pry into slots.
