Test F: Window Motor Test

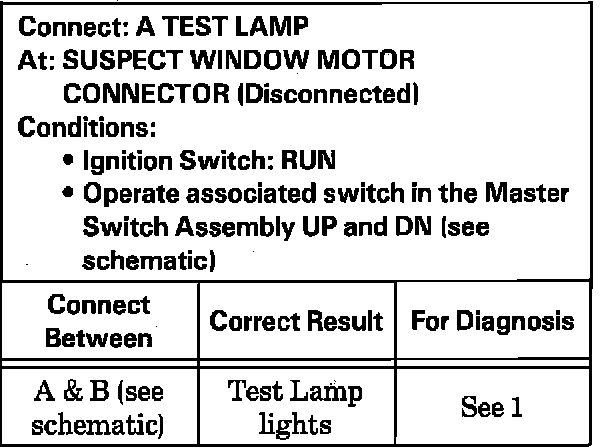

Test F: Window Motor Test:

NOTE: If result is correct, replace suspect Window Motor.

1. Check the wires to the suspect window motor for an open (see schematic). If wires are OK, and the LH front Window Motor does not operate, replace the power window control module.
