Programming and Relearning

PROGRAMMING PROCEDURE


NOTE: Do the following procedure whenever the Keyless Programming Connector is grounded, the Keyless Entry Receiver is replaced, the Portable Transmitter is replaced or a second Transmitter is added.

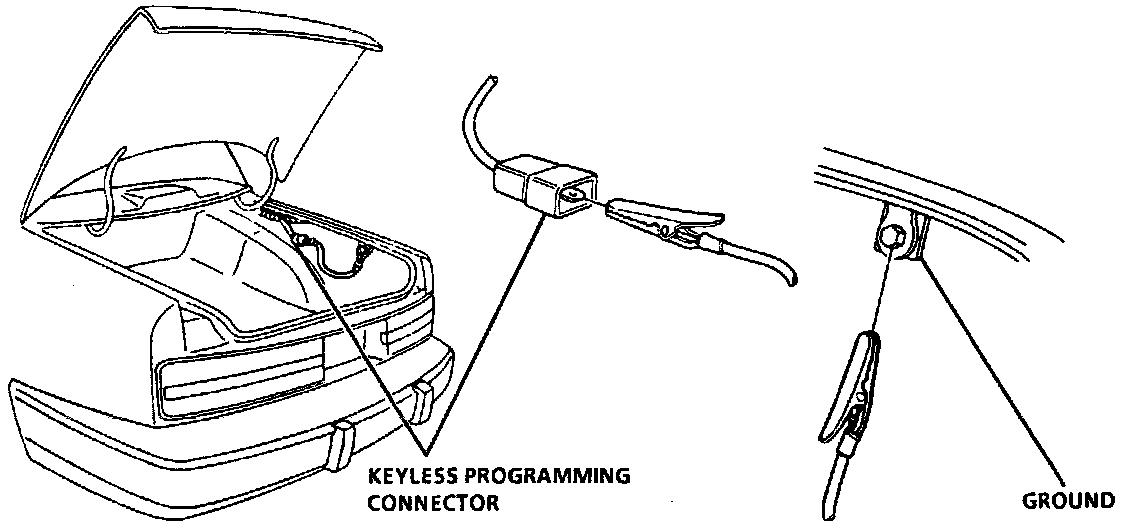

1. Jumper the Keyless Programming Connector to ground (all power door locks will lock and unlock).

2. Operate Transmitter by pressing a single button once.

3. To program for a second Portable Transmitter, operate Transmitter 2 by pressing a single button once. In order for programming to be complete, wait after each button is pressed for the locks to fully cycle.

4. Disconnect Keyless Programming Connector Jumper after locks have finished cycling.

5. Verify that the Portable Transmitter(s) operate Door Locks and Trunk Lid Release.
