Install Transaxle Case Side Cover

Case Side Cover, Oil Pump, And Control Valve Body.:

Case Side Cover View

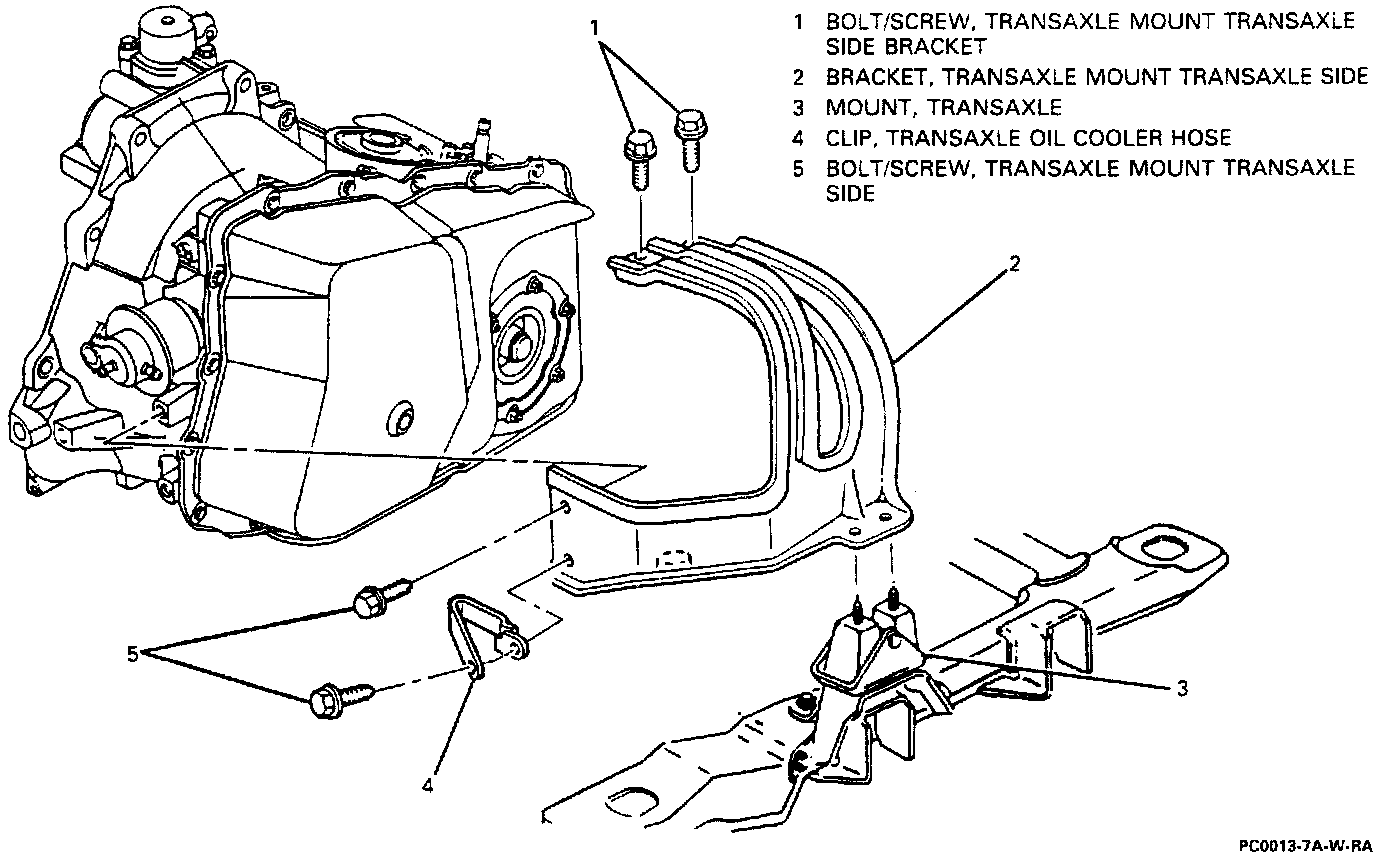

Transaxle Brackets - 4T60-E (3.1L Engine):

Transaxle Bracket - 3.1L Engine Shown

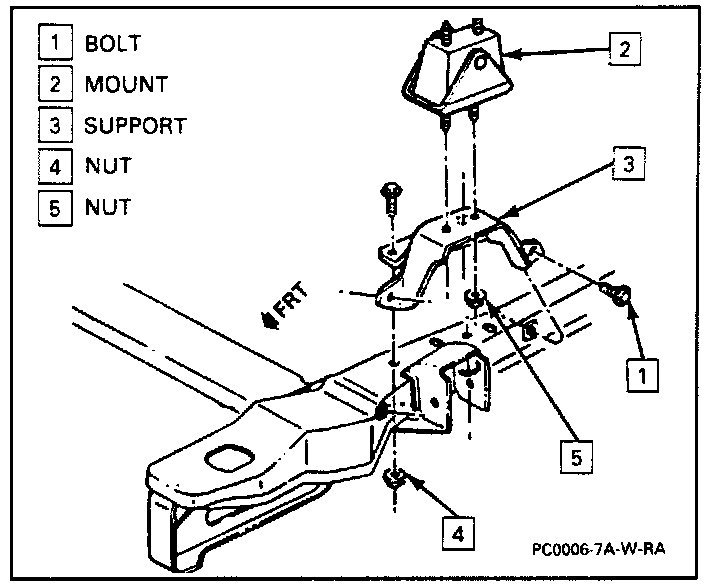

Transaxle Mount - 4T60-E:

Transaxle Mount

Transaxle To Engine Brace:

Transaxle to Engine Brace - 2.2L, 3.1L Shown, Others Similar

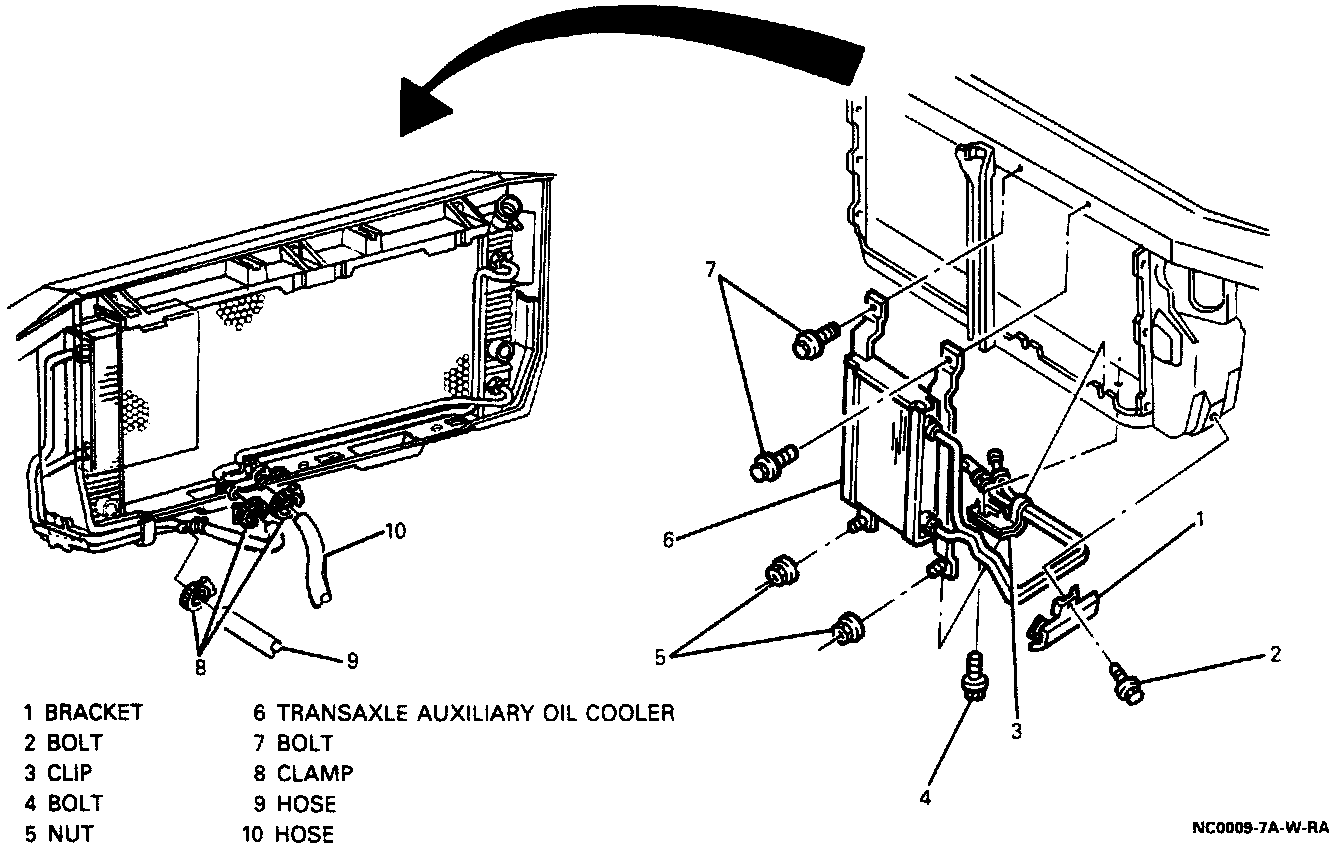

Auxiliary Oil Cooler - 4T60-E:

Auxiliary Oil Cooler

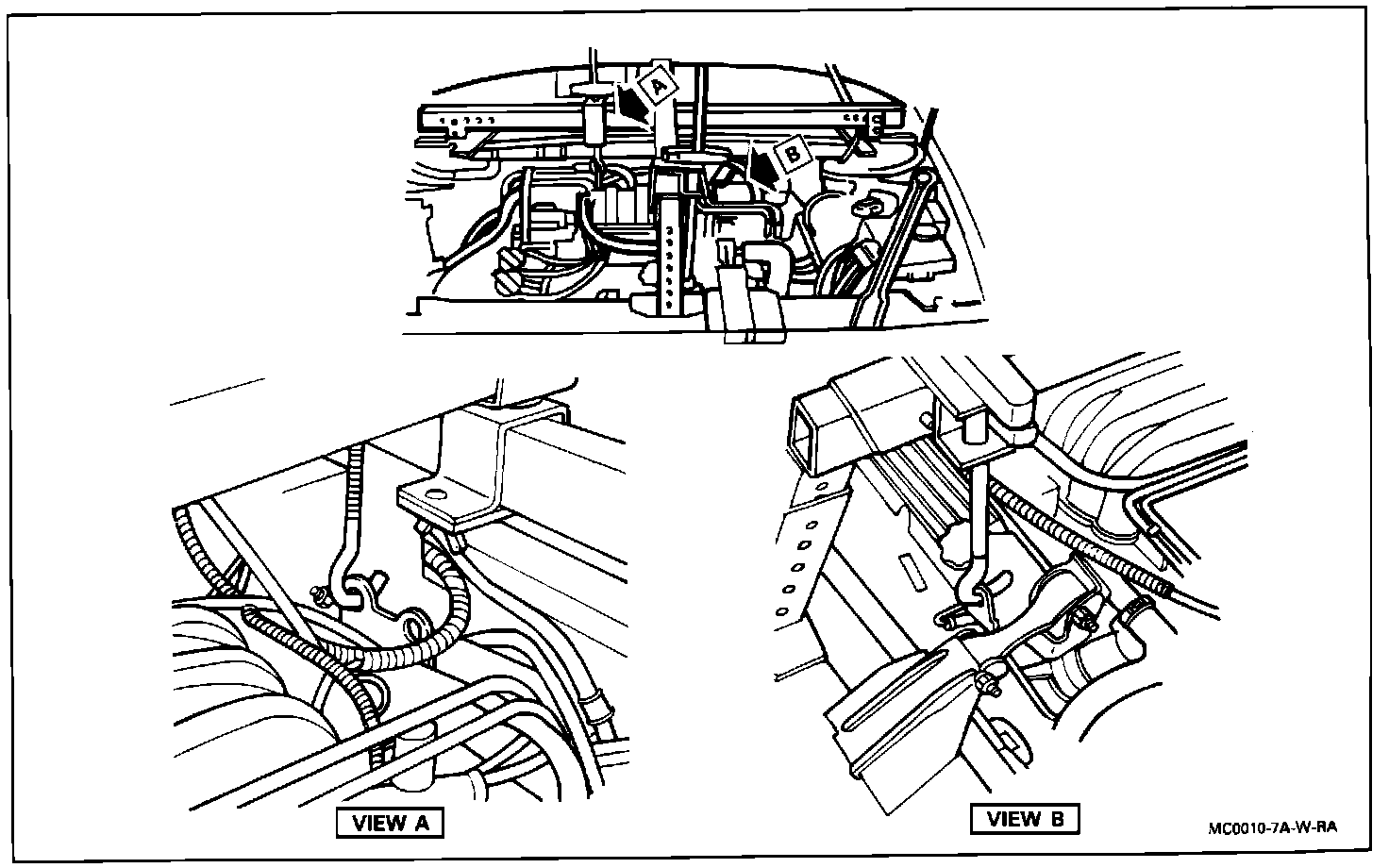

Engine Support Fixture - 2.2L Engine:

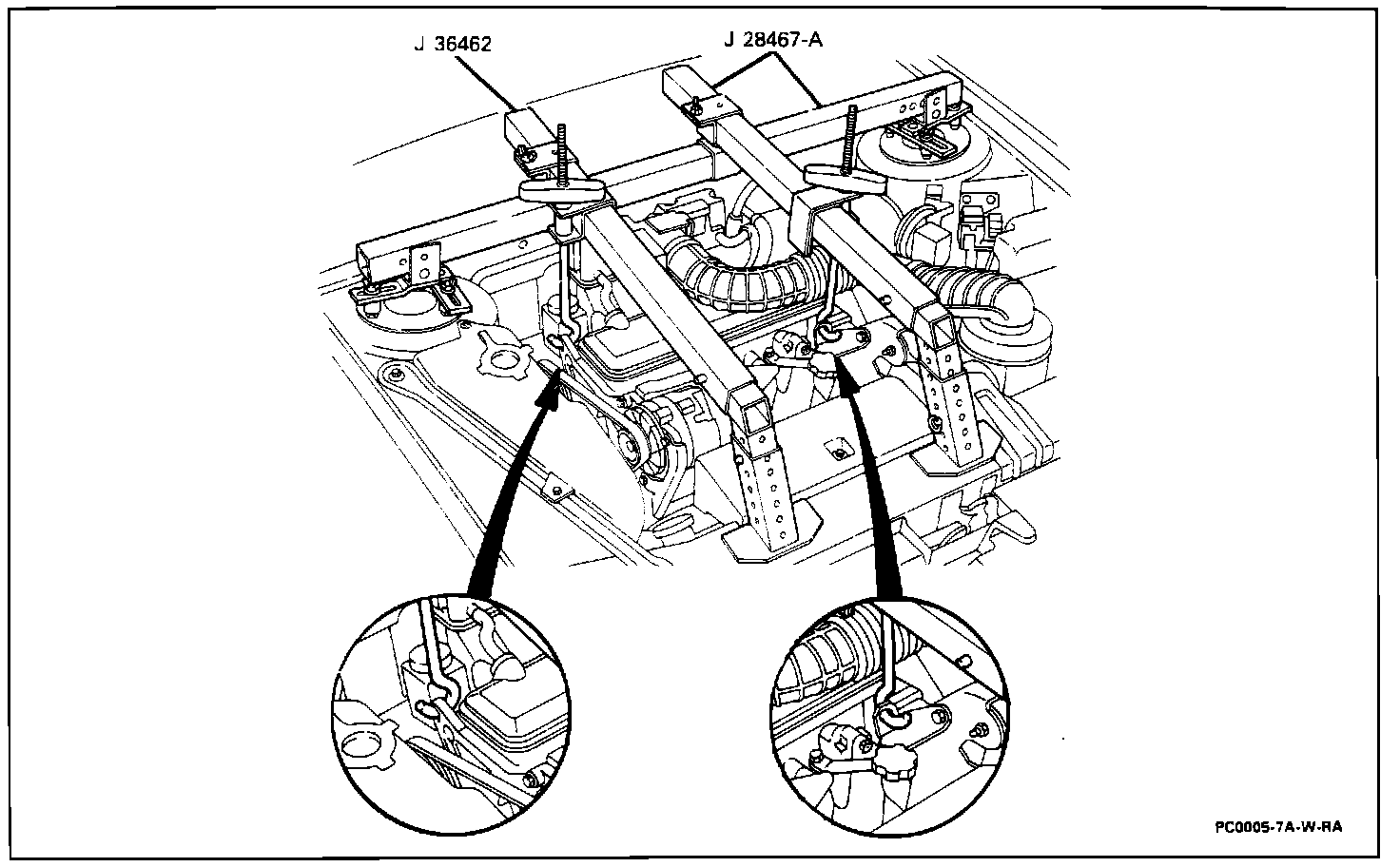

Engine Support Fixture Installation - 3.1L Engine:

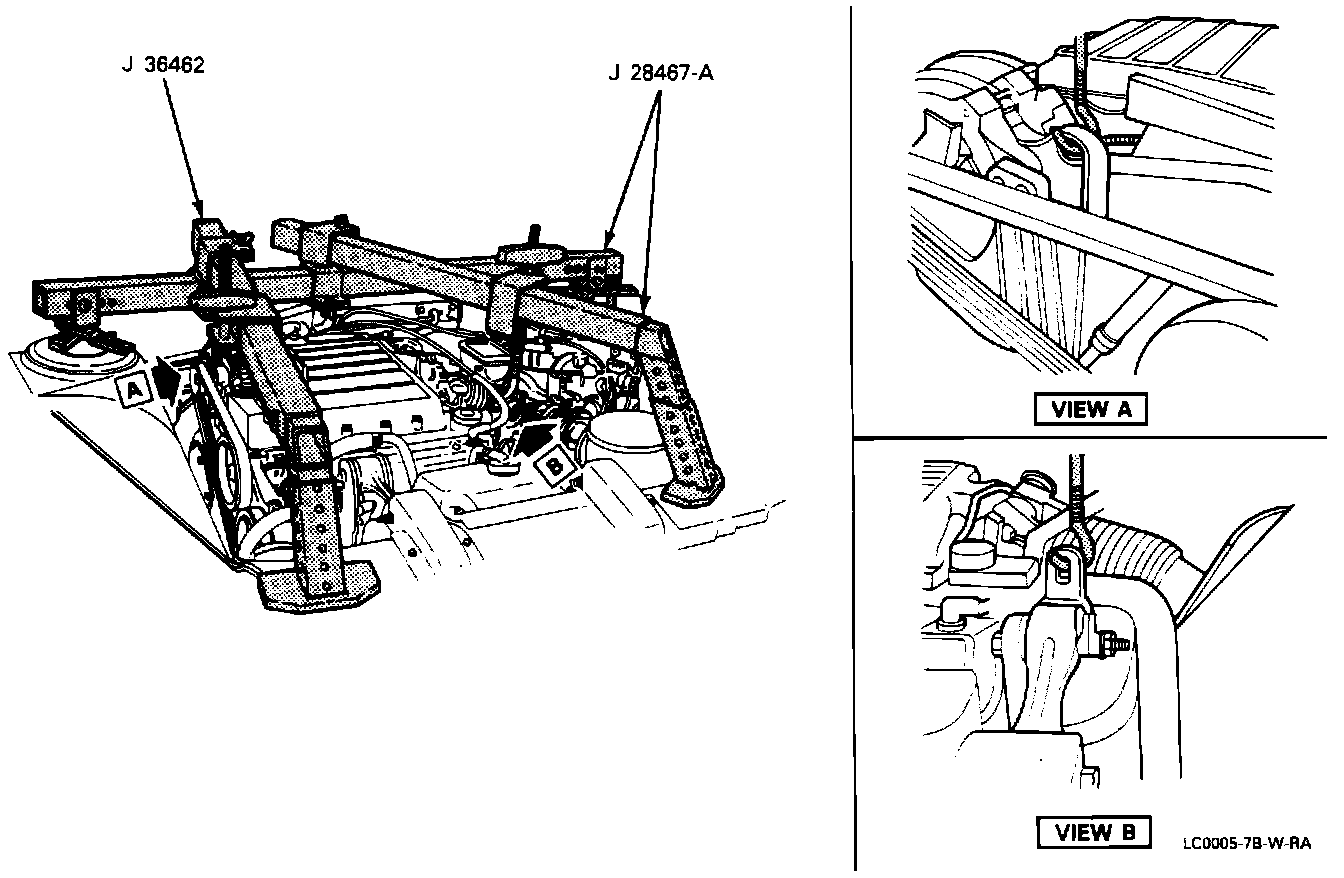

Engine Support Fixture - 3800 Engine:

Engine Support Fixture J-28467 Hookup (2.2L, 3.1L, & 3.8L)

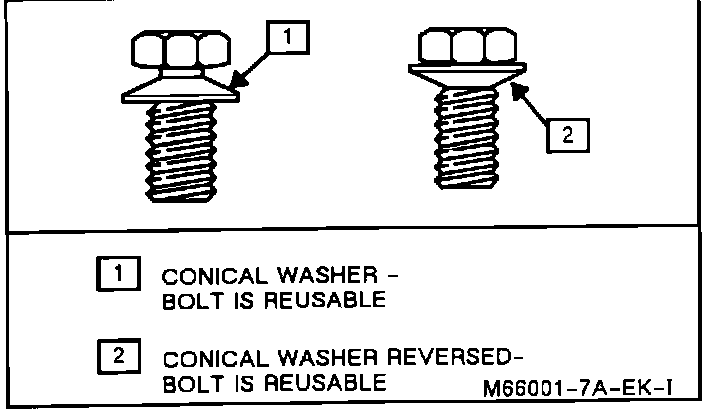

Case Side Cover Bolts Inspection.:

Case Side Cover Bolts Inspection




CLEAN AND INSPECT:
^ Case and side cover gasket surfaces.



INSTALL OR CONNECT

1. Case side cover and pan.
2. Bolts/screws and nuts.
3. Tighten bolts/screws to 11 Nm (97 in lb) and nuts to 8 Nm (71 in lb).
4. Transaxle mount bracket.
5. Left drive axle.
6. Wiring harness.
7. Left side steering rack bolt/screw.
8. Frame to body bolts/screws. Torque to 47 Nm (35 ft lb).
9. Remove support from from frame.
10. Ball joints at steering knuckle.

CAUTION: When installing the intermediate shaft make sure the shaft is seated prior to pinch bolt installation. If the pinch bolt is inserted into the coupling before shaft installation, the two mating shafts may disengage.

11. Pinch bolt at intermediate steering shaft.
12. Engine mount nuts at frame.
13. Transaxle mount.
14. Left inner fender splash shield.
15. Left front wheel.
16. Lower vehicle.
17. Bolt/screw at top of transaxle mount bracket. Tighten to 102 Nm (75 ft lb).
18. Remove J-28467-A, J-28467-90, and J-36462.
19. Shift cable clip at lever and mount bracket.
20. Crossover pipe.
21. Air cleaner assembly.
22. Negative battery cable.
23. Refill transaxle fluid to proper level.
