ABS/Traction Control System - Revised Connector View
NUMBER: 93-U-04CORP.REF.NO: 205002
DATE: October 1992
SECTION: 5E1, 5E2
SUBJECT:
ANTILOCK BRAKE SYSTEM AND TRACTION CONTROL SYSTEM
- REVISED CONNECTOR VIEWS
MODELS/YEARS:
1992-93 EIGHTY EIGHT AND NINETY EIGHT

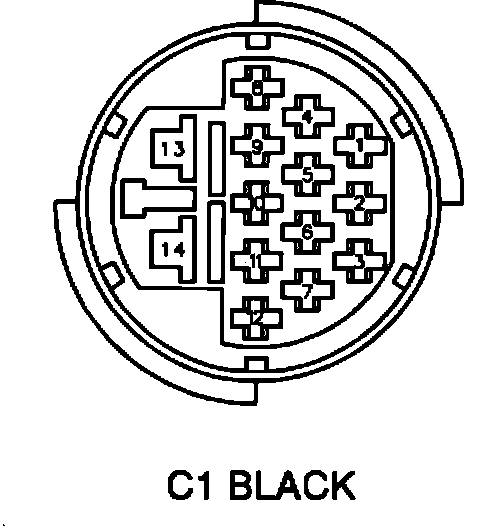

The "Connector Views" page found in the following service manuals are wiring harness views of the connectors, not the component connector. The wiring harness connector to the pressure modulator valve has been redrawn to add detail that should avoid confusion. It has been drawn close to the same size as the original view, so, if you wish, you can photo-copy the revised view and tape it over the old view. Please mark a reference to this bulletin in your copy of the affected manuals.
1991 Oldsmobile Service Manual Supplement, page 5E1-71 1992 Oldsmobile Eighty Eight, page 5E1-69 1992 Oldsmobile Ninety Eight, page 5E1-72 1993 Oldsmobile Eighty Eight and Ninety Eight, page 5E2-75
