Passkey II System

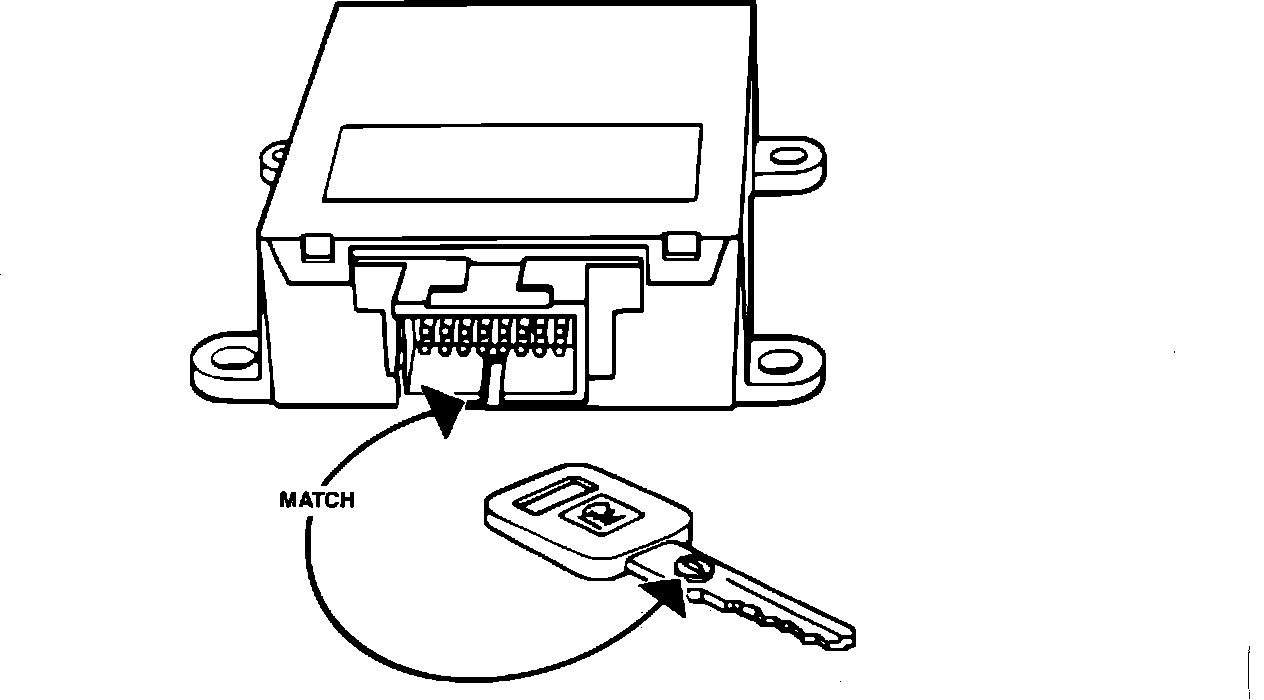

Passkey Module And Passkey Ignition Key - Matching Codes:

CIRCUIT OPERATION

The brain of the PASSkey(R) system is a special decoder module that reads the pellet resistance through the lock cylinder contacts. It then compares this key code with its own internal code.

If the codes match, the decoder supplies a ground for the starter enable relay and modulates a 5 volt reference signal (at 2.5 volts) from the ECM or PCM which will then pulse the fuel injectors.

If the codes do not match, the decoder module sets its internal timer which locks out starter operation and fuel enable for up to three minutes.
