Chart M: Heater & A/C Control Assembly Test

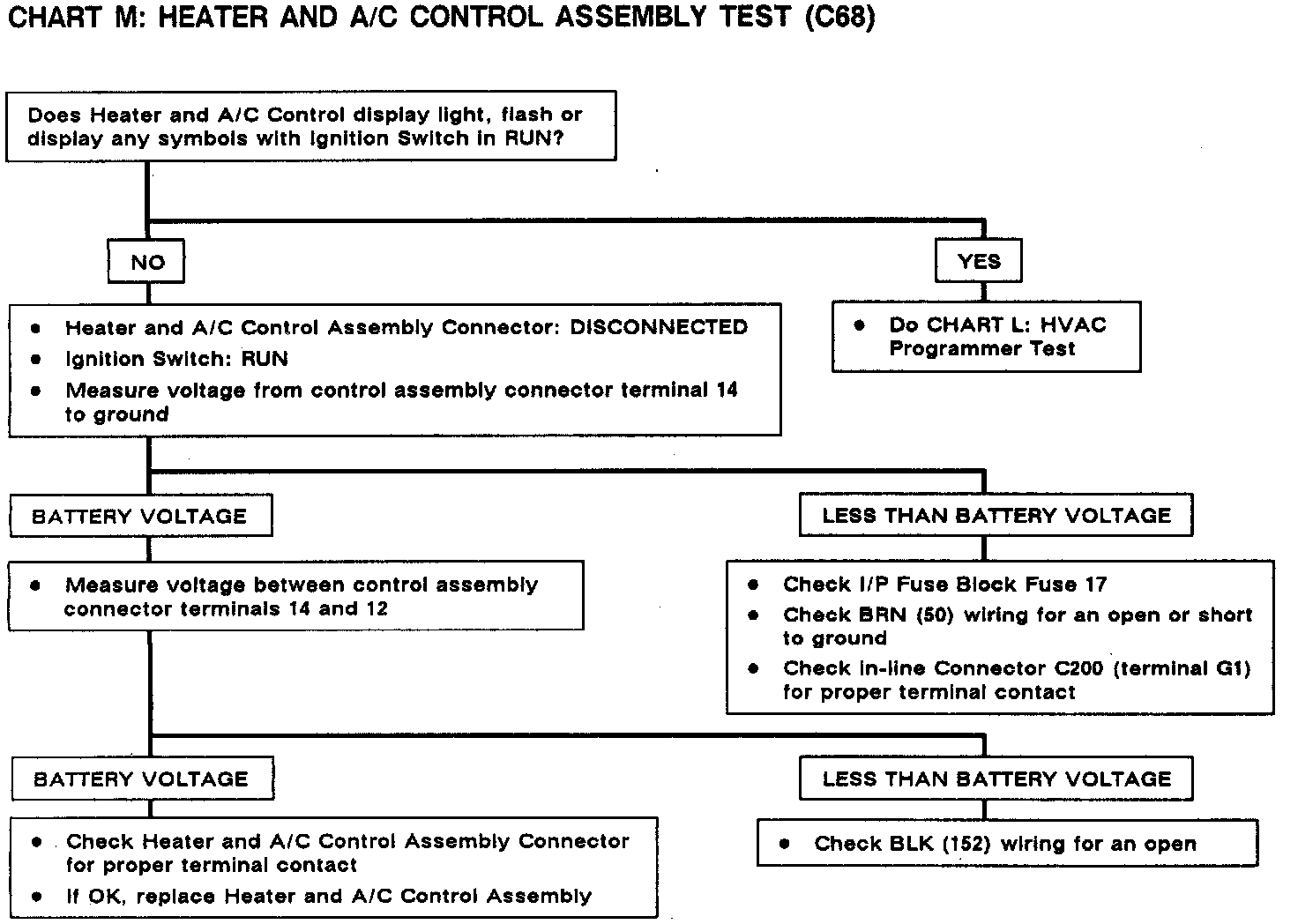

Diagnostic Chart:
Electrical Chart:
Electrical Chart:
Electrical Chart:
