Home >> Oldsmobile >> 1993 >> Ninety-Eight V6-3800 3.8L >> Repair and Diagnosis >> Powertrain Management >> Locations >> Pictoral Views >> View From Right Front of Engine Compartment

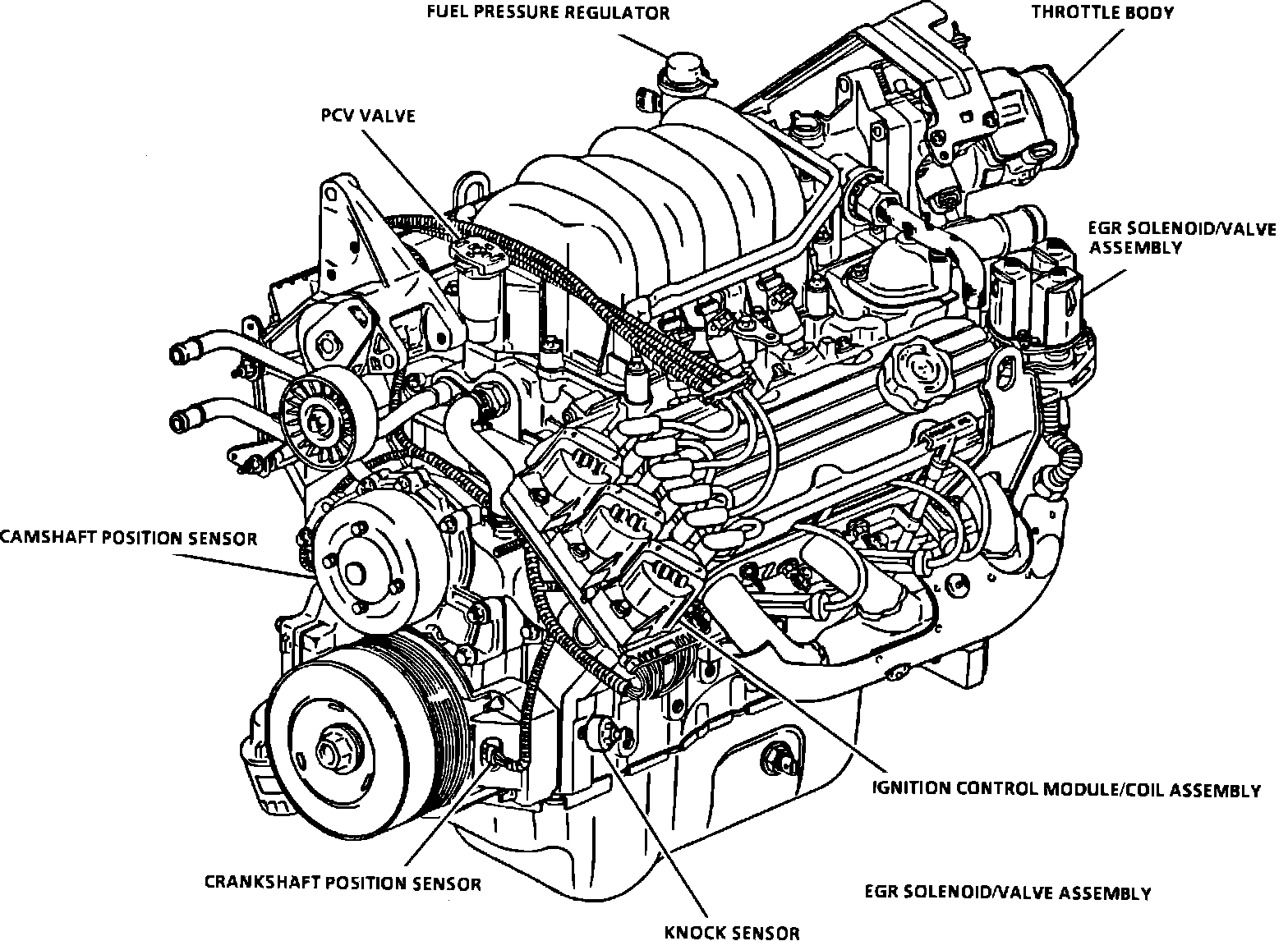

View From Right Front of Engine Compartment

Engine - View From Right Front Of Vehicle:
