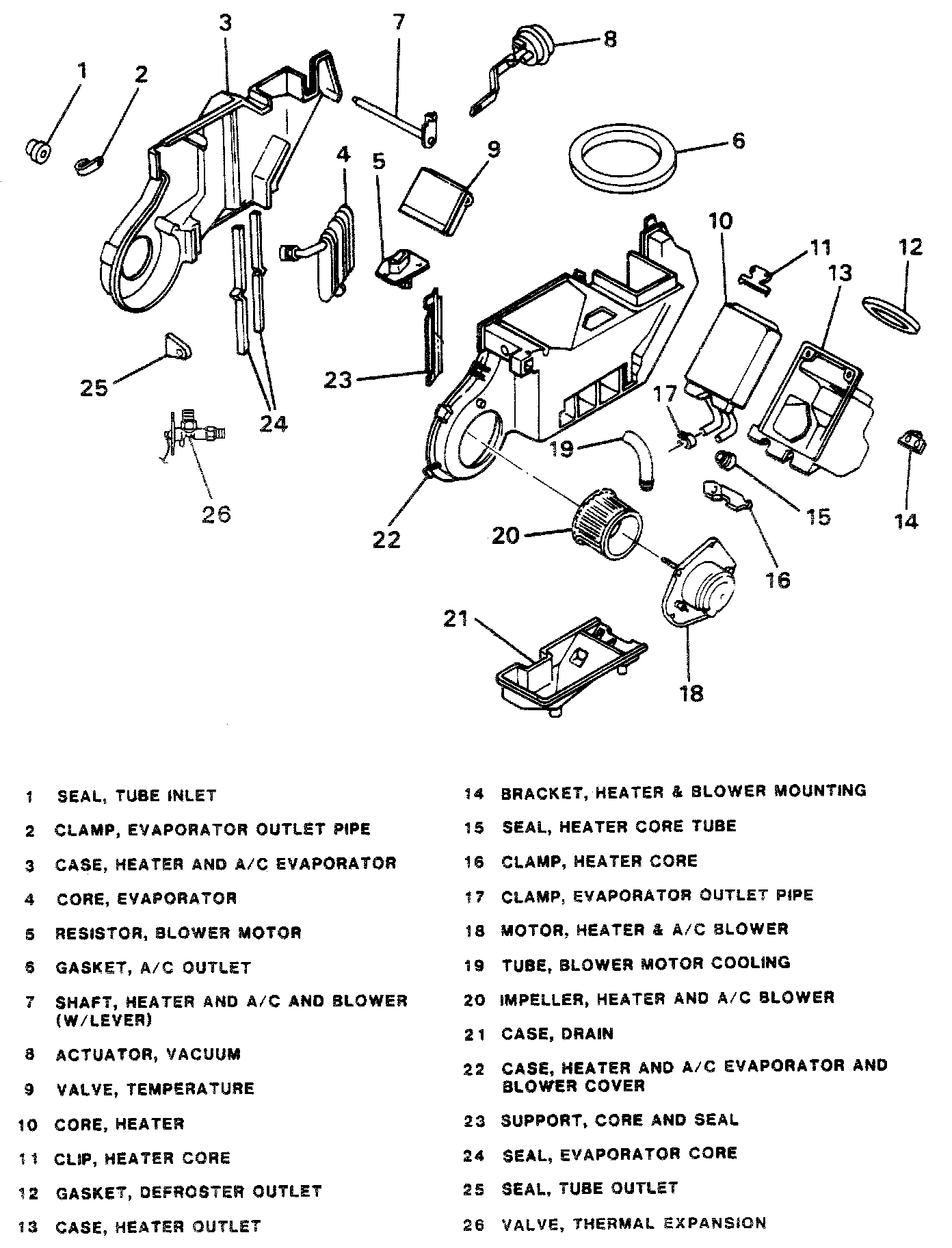

Housing Assembly HVAC: Service and Repair

Remove or Disconnect

1. Evaporator and blower module from vehicle.
2. Clamps and heater inlet/outlet hoses from heater core pipes.
3. Lower outlet sealing plate from heater core cover.
4. Screws retaining heater core cover and cover from module.
5. Screws retaining heater core bracket and bracket from module.
6. Screws retaining heater core pipe strap and heater core from module.

Install or Connect

1. Heater core into case and core pipe strap screws.
2. Heater core bracket and screws.
3. Heater core cover and screws.
4. Heater inlet/outlet hoses onto core pipes and clamps.
5. Lower outlet sealing plate onto heater core cover.
6. Evaporator and blower module into vehicle.
