Wiper Gear Box: Service and Repair

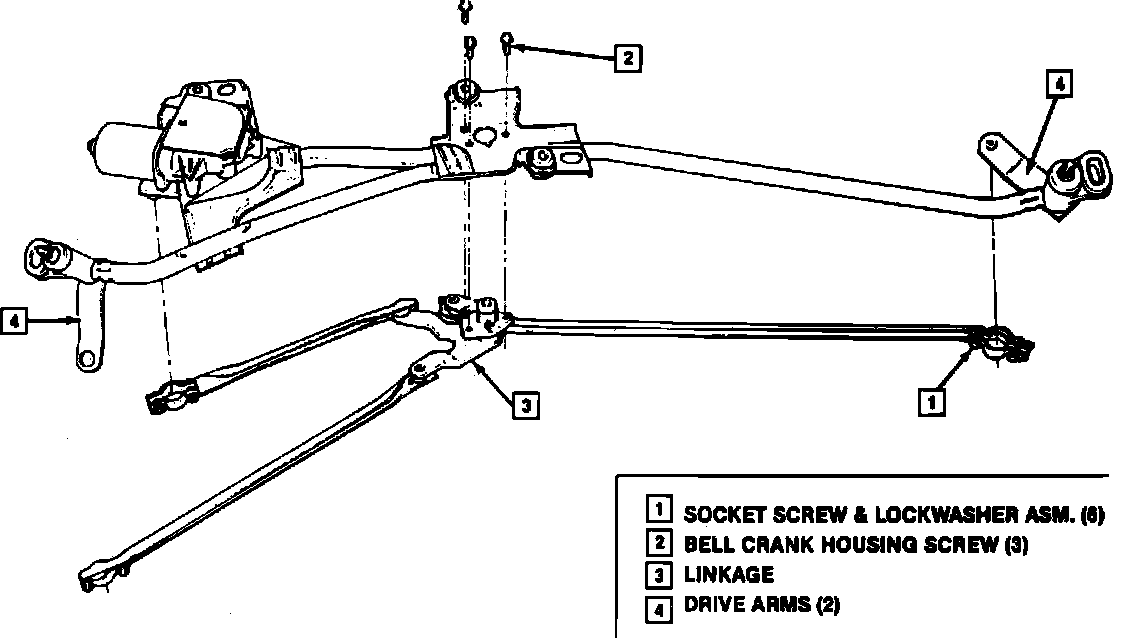

Fig. 17 Wiper Transmission Removal:

1. Remove wiper module as described under WIPER MODULE.
2. Using 8 mm socket, loosen six socket screw and lockwasher assemblies until each of three sockets releases from respective ball, Fig. 17.
3. Using 10 mm socket, remove three bell crank housing screws.
4. Reverse procedure to install.
