Engine - Camshaft Housing Assemblies
FILE IN SECTION: 6 - EngineBULLETIN NO.: 57-61-02
DATE: February, 1995
SUBJECT:
Camshaft Housing Assemblies
MODELS:
1988-94 Buick Skylark
1990-94 Chevrolet Beretta
1987-91 Oldsmobile Cutlass Calais
1990-91 Oldsmobile Cutlass Supreme
1992-94 Oldsmobile Achieva
1988-94 Pontiac Grand Am
1990-91 Pontiac Grand Prix
with 2.3L Engine (VINs A, D, 3 - RPOs LG0, LD2, L40)
All 1987 through 1993 Quad-4 camshaft housing assemblies are serviced with a 1994 model camshaft housing assembly.
The 1987 through 1993 housings have a seal groove in the housing. The 1994 housings have a seal groove in the cover. The seal groove in the 1994 cover is deeper than the seal groove in the 1987-93 housings. If a 1987-93 seal is used in the 1994 housing assembly, the cover gasket will leak. If a 1994 seal is used in a 1987-93 housing assembly, camshaft journal clearance and seal life could be affected.
Order a 1994 camshaft housing assembly seal if a 1994 housing is on the engine.

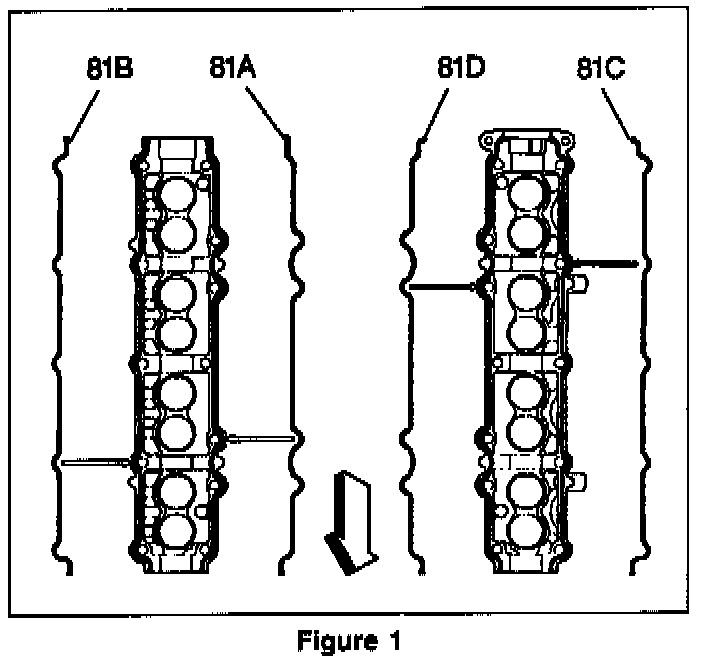

Figure 1 shows the 1987-93 version of the camshaft housing to cover seals.
81A Seal, inner (exhaust, red)
81B Seal, Outer (exhaust, red)
81C Seal, outer (intake, blue)
81D Seal, inner (intake, blue)
90 Housing, camshaft - Groove in housing

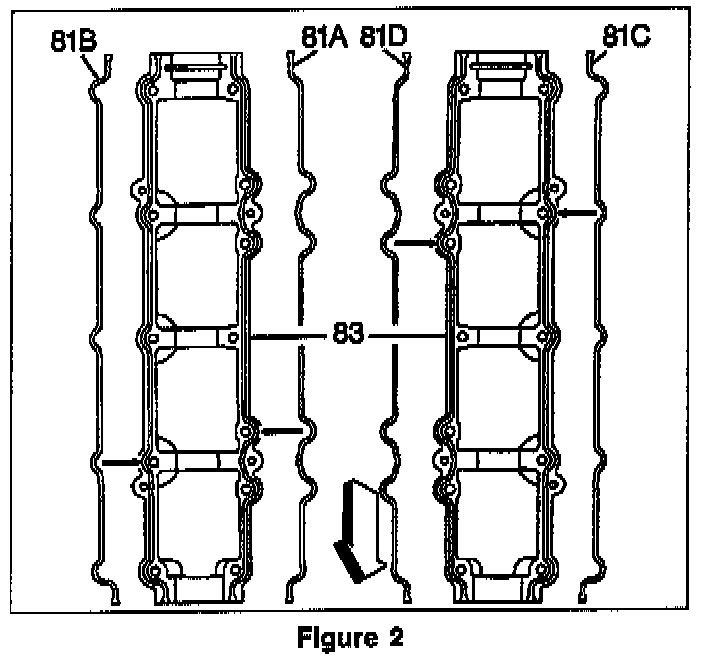

Figure 2 shows the 1994 version of the camshaft housing to cover seals.
81B Seal, Outer (exhaust, red)
81C Seal, outer (intake, blue)
81D Seal, inner (intake, blue)
90 Cover, camshaft housing - Groove in cover
The 1994 cam carrier cover surface that seals against the housing is not a machined surface. The surface is designed to be an "AS CAST" surface and the unmachined surface will not cause a leak.
