Front

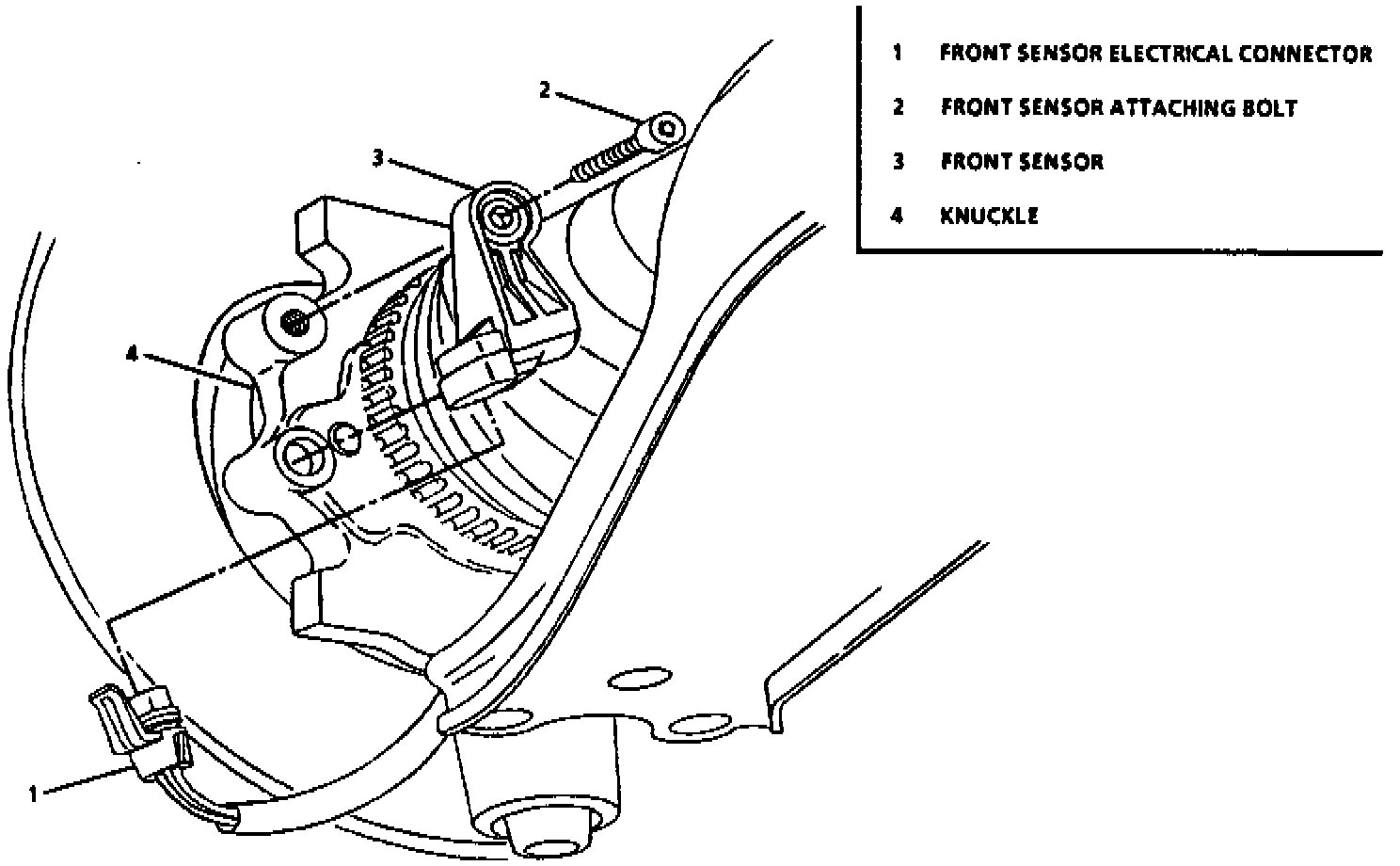

Fig. 802 Front Wheel Speed Sensor Removal.:

1. Raise and support vehicle.
2. Disconnect wheel sensor electrical connector, Fig. 802.
3. Remove sensor attaching bolt, then the sensor from the mounting bracket.
4. Reverse procedure to install, noting the following:
a. Ensure sensor is properly aligned and lays flat against bracket bosses, then torque attaching bolt to 9 ft. lbs.
