Home >> Oldsmobile >> 1994 >> Bravada V6-262 4.3L VIN W CPI >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Electronic Brake Control Module >> Locations

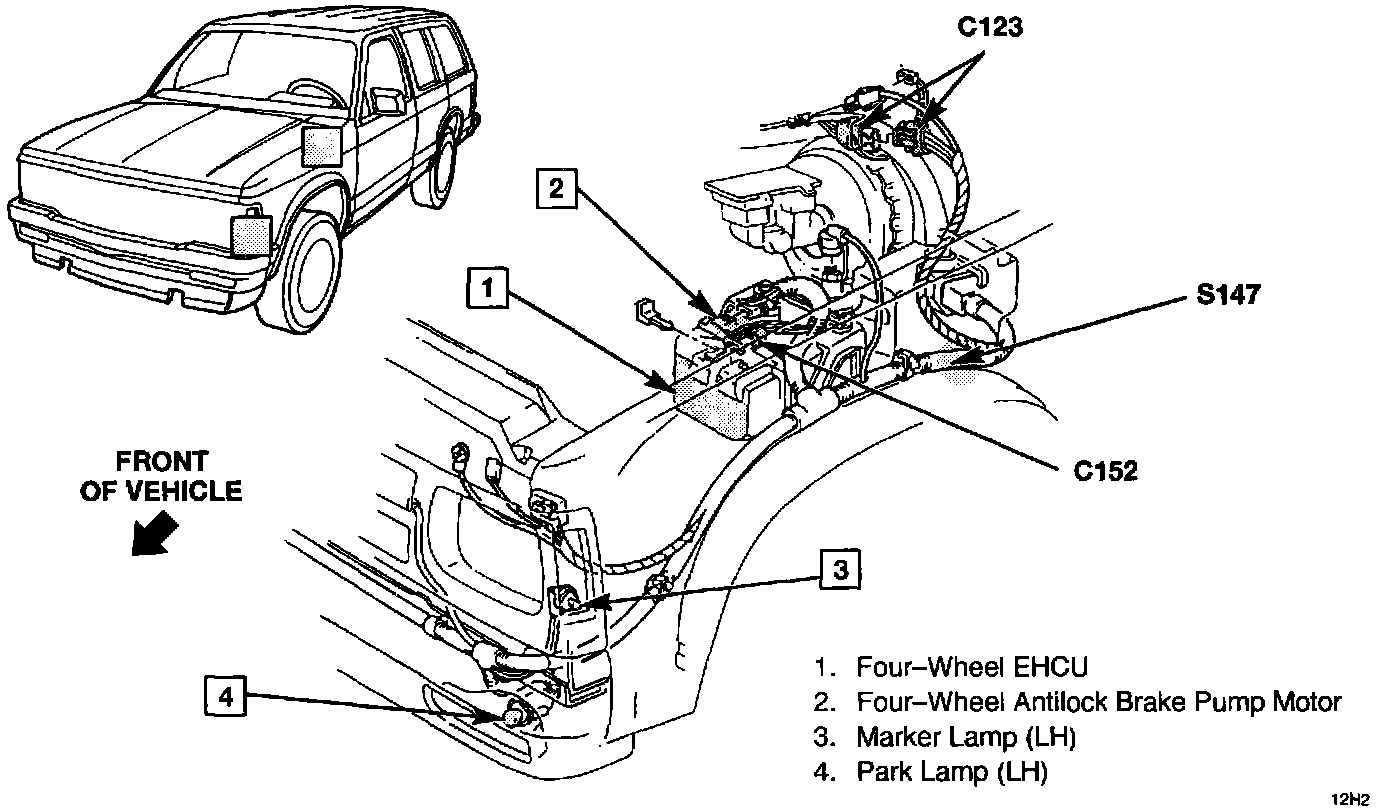

Electronic Brake Control Module: Locations

Forward Lamps Harness, LH Side:
