Engine Controls

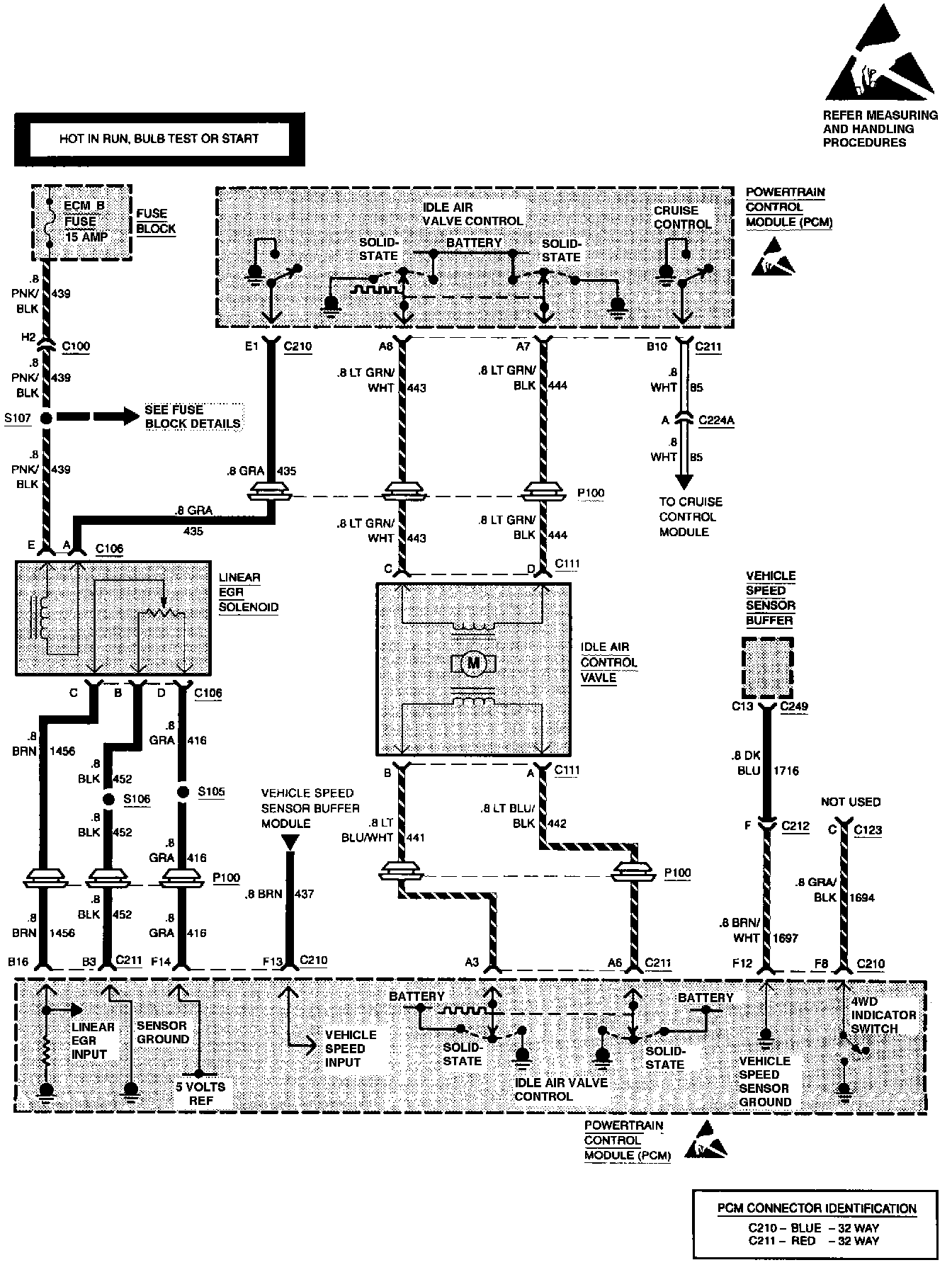

Engine Controls:

Engine Controls:

Engine Controls:

Engine Controls:

Engine Controls:

Engine Controls:

Engine Controls:
